Product Overview: ADG1213YCPZ-500RL7 by Analog Devices Inc.

The ADG1213YCPZ-500RL7 is a high-performance, quad single-pole single-throw (SPST) switch manufactured by Analog Devices Inc., a leader in the semiconductor industry. This product is designed to deliver exceptional signal integrity and reliability for a wide range of applications, from precision data acquisition systems to industrial automation and control.

Key Features

• Low On-Resistance: The ADG1213YCPZ-500RL7 boasts a low on-resistance, typically around 1.5 ohms, ensuring minimal signal attenuation and power loss across the switch.
• Wide Operating Voltage Range: This device operates across a broad voltage range of ±5 V to ±16.5 V or a single supply of 10 V to 16.5 V, providing versatility in various circuit configurations.
• Low Power Consumption: With its low power consumption, the ADG1213YCPZ-500RL7 is ideal for power-sensitive applications, helping to extend battery life in portable devices.
• High ESD Protection: The switch offers robust electrostatic discharge (ESD) protection, ensuring resilience against environmental stresses and enhancing product longevity.
• Fast Switching Times: Fast switching times, with turn-on and turn-off times typically in the nanosecond range, make this switch suitable for high-speed signal routing.

Applications

The ADG1213YCPZ-500RL7 is suitable for a variety of applications, including:

• Automatic Test Equipment (ATE)
• Data Acquisition Systems
• Communication Systems
• Relay Replacement
• Audio and Video Switching

Package and Quality

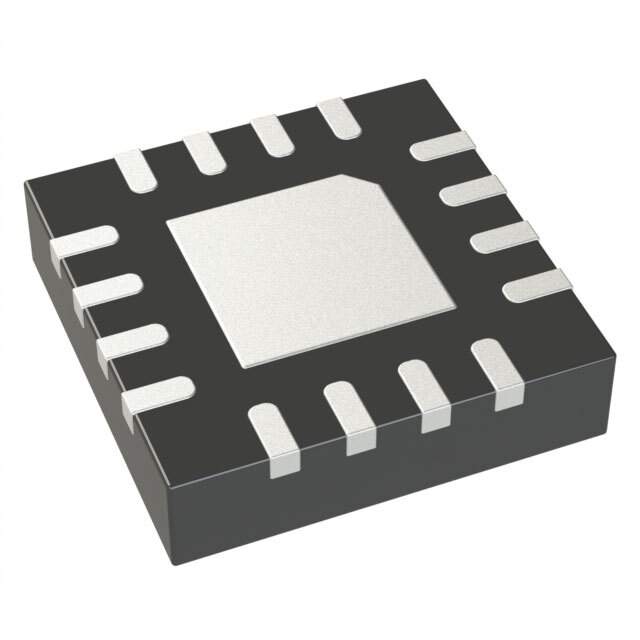

The device comes in a compact 16-lead LFCSP (3 mm × 3 mm) package, making it an excellent choice for space-constrained applications. Each unit is rigorously tested and adheres to the high-quality standards of Analog Devices Inc., ensuring reliable performance in the field.

Ordering Information

The part number ADG1213YCPZ-500RL7 is available in reel packaging, facilitating easy integration into automated manufacturing processes. For ordering, this product is supplied in quantities of 500 units per 7-inch reel, streamlining procurement for high-volume production requirements.

With its robust design, versatile operation, and precise performance, the ADG1213YCPZ-500RL7 from Analog Devices Inc. is an excellent choice for designers looking to enhance their system's signal routing capabilities.
