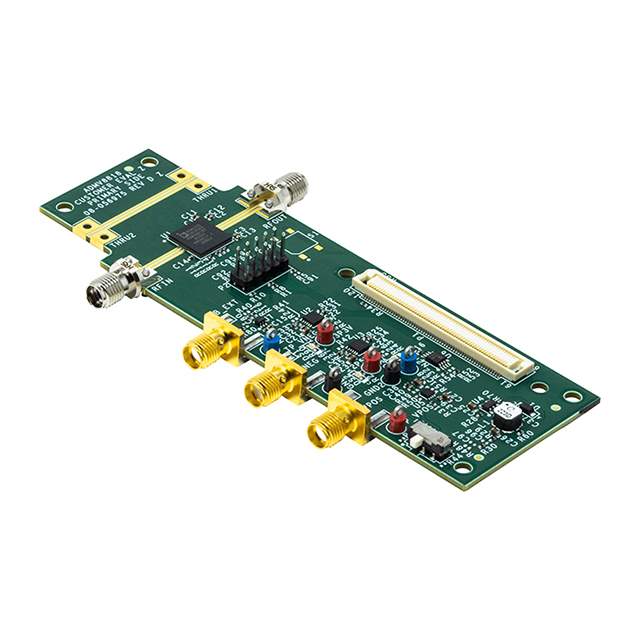

The ADMV8818-EVALZ by Analog Devices Inc. is a fully featured evaluation board designed for the ADMV8818, a highly integrated microwave bandpass filter. This state-of-the-art product allows for easy testing and evaluation of the ADMV8818 chip, which is a tunable band-pass filter covering a frequency range from 2 GHz to 18 GHz.

Key Features

• Wide Frequency Range: The ADMV8818-EVALZ supports a broad frequency spectrum, making it ideal for various applications in the RF and microwave domains, including electronic warfare, satellite communications, and radar systems.
• Highly Configurable: With the ability to tune the center frequency and 3 dB bandwidth via serial peripheral interface (SPI), users can tailor the filter's performance to meet specific system requirements.
• Performance Optimization: The evaluation board provides access to all the critical test points and control signals for thorough performance assessment and optimization.
• Plug-and-Play: The ADMV8818-EVALZ is designed for ease of use, featuring a user-friendly interface that allows for quick setup and immediate operation without the need for complex configurations.
• Durable Construction: Built with high-quality materials, the evaluation board ensures durability and reliability for consistent, long-term testing.

Technical Specifications

• Frequency Range: 2 GHz to 18 GHz
• Control Interface: SPI
• Power Supply: +3.3 V
• Impedance: 50 Ohms nominal

The ADMV8818-EVALZ evaluation board comes with detailed documentation, including a user guide that provides comprehensive instructions for setup and operation. With its robust design and flexible features, the ADMV8818-EVALZ is an invaluable tool for engineers and designers looking to harness the full potential of the ADMV8818 tunable band-pass filter in their next project.
