Analog Devices Inc. ADGS1408BCPZ High-Performance Analog Multiplexer

The ADGS1408BCPZ is a state-of-the-art analog multiplexer from Analog Devices Inc., renowned for its high performance and reliability in various demanding applications. Designed with precision and versatility in mind, this multiplexer is an ideal choice for data acquisition systems, test equipment, and other applications requiring high-speed, low-on-resistance switching of multiple analog signals.

Key Features

• Low On-Resistance: The ADGS1408BCPZ offers a remarkably low on-resistance (Ron) of typically 4.5 Ω, which minimizes signal attenuation and ensures excellent signal fidelity.
• Single 8:1 Multiplexer Configuration: This device features a single 8-channel to 1-channel multiplexer configuration, providing the flexibility to route any of the eight inputs to a single output.
• Wide Voltage Range: It operates over a broad supply voltage range of ±9 V to ±18 V or 9 V to 36 V in single supply mode, accommodating a wide array of signal levels.
• High ESD Protection: The device is designed with a high electrostatic discharge (ESD) protection level, safeguarding it against damage from static electricity.
• Overvoltage Protection: Inputs on the ADGS1408BCPZ are protected against overvoltage events, enhancing the durability and lifespan of the multiplexer.
• Fast Switching Times: With tON and tOFF times typically around 120 ns and 80 ns respectively, the device ensures rapid signal switching, making it suitable for high-speed applications.
• Low Power Consumption: Its CMOS construction implies that the device consumes minimal power, an essential characteristic for energy-sensitive designs.
• iCMOS® Technology: The integration of iCMOS® modular manufacturing process combines high-voltage silicon with submicron CMOS and complementary bipolar technologies, enabling the ADGS1408BCPZ to achieve exceptional performance.

Applications

The ADGS1408BCPZ is versatile enough to be used in a variety of applications, including:

• Automated Test Equipment (ATE)
• Data Acquisition Systems (DAS)
• Instrumentation
• Process Control
• Relay Replacement
• Battery-Powered Systems

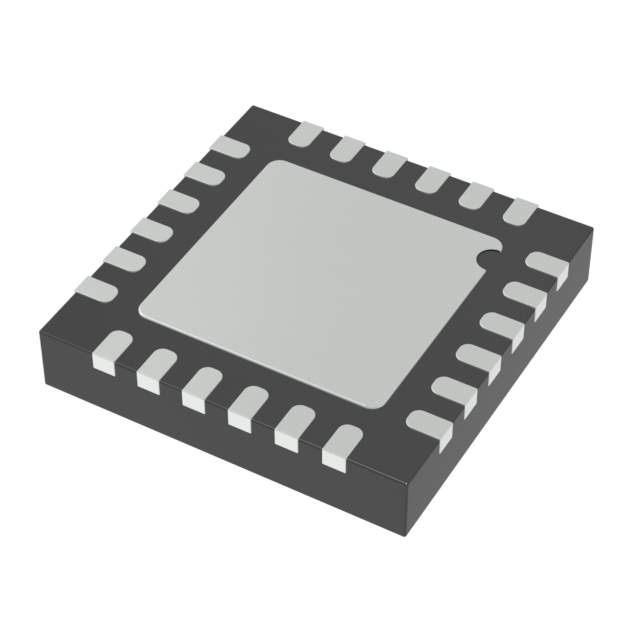

Encased in a compact 20-lead LFCSP package, the ADGS1408BCPZ is designed for easy integration into space-constrained designs. Its robust feature set makes it a top choice for engineers looking for a multiplexer that delivers both performance and long-term reliability.
