Product Overview: AD7683ACPZRL7 by Analog Devices Inc.

The AD7683ACPZRL7 is a precision, 16-bit, successive approximation analog-to-digital converter (ADC) from the renowned manufacturer Analog Devices Inc. This high-performance component is designed to offer exceptional accuracy and low power consumption, making it an ideal choice for a wide range of applications, including medical instruments, industrial control systems, and battery-powered devices.

With its compact package, the AD7683ACPZRL7 incorporates a capacitor-based, successive approximation register (SAR) ADC with a sample-and-hold circuit, providing a fully differential analog input and a serial digital output. The device operates from a single 2.5 V power supply and features a high-speed SPI-compatible serial interface, allowing for easy integration into various digital systems.

One of the key features of the AD7683ACPZRL7 is its no missing codes performance, which ensures that the ADC provides a reliable and precise digital representation of the analog signal. The device also boasts an impressive throughput rate of 100 kSPS (kilo-samples per second), enabling real-time data acquisition for demanding applications.

In terms of power efficiency, the AD7683ACPZRL7 excels with its low power consumption, drawing only 1 mA in normal operation and offering a power-down mode that reduces the current to a mere 1 µA, thus extending the battery life of portable devices. This feature is particularly beneficial for remote sensing and portable medical devices where power efficiency is critical.

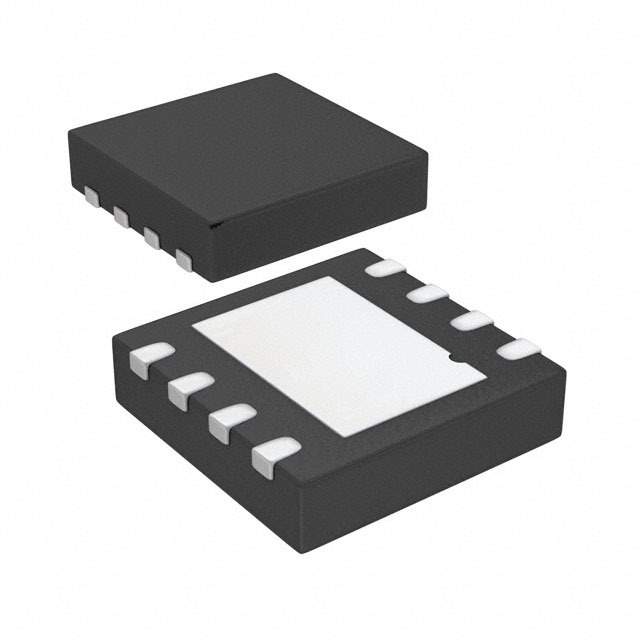

The robust design of the AD7683ACPZRL7 ensures that it can operate over a wide temperature range, making it suitable for industrial environments. Furthermore, the device comes in a lead frame chip scale package (LFCSP), which not only saves space but also provides excellent thermal performance and reduces parasitic inductance and capacitance, enhancing the overall signal integrity.

In summary, the AD7683ACPZRL7 from Analog Devices Inc. is a high-precision ADC that offers a perfect blend of accuracy, speed, and power efficiency. Its compact size, robust performance, and ease of integration make it a top choice for engineers and designers looking to incorporate reliable data conversion in their systems.
