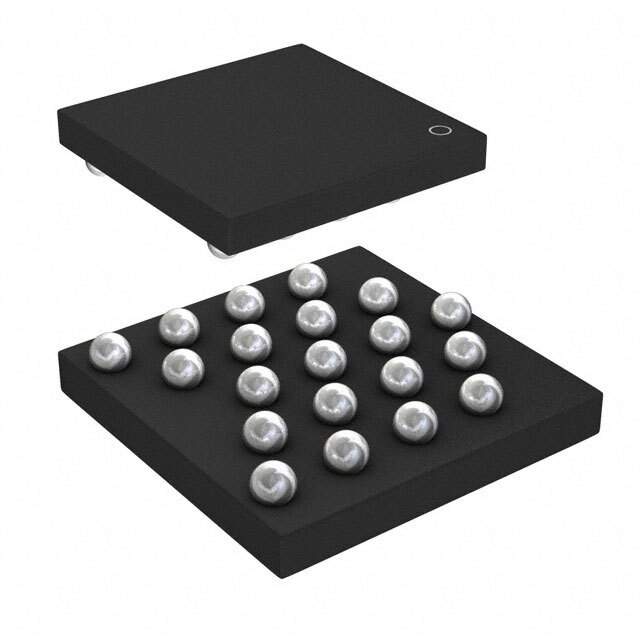

Product Overview: AD7682BCBZ-RL7

The AD7682BCBZ-RL7 is a high-precision, 16-bit Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc., one of the leading companies in the semiconductor industry. This ADC is part of their PulSAR® series and is designed to offer excellent data acquisition performance in a compact, surface-mount package. The product is specifically tailored for applications requiring high accuracy and low power consumption, making it an ideal choice for battery-powered devices, medical instruments, and industrial control systems.

Key Features

• Resolution: 16-bit with no missing codes
• Throughput: Up to 250 kSPS (kilo-samples per second)
• Input Type: Pseudo-differential input with a wide input common-mode range
• Interface: Serial interface compatible with several microcontrollers and DSPs
• Power Supply: Single 5 V supply operation
• Power Dissipation: Low power consumption for energy-efficient applications
• Package: Compact 10-lead MSOP (Mini Small Outline Package)
• Temperature Range: Operational from -40°C to +125°C, suitable for harsh environments

Performance Advantages

The AD7682BCBZ-RL7 stands out for its exceptional performance, delivering a high level of precision and stability. It features an on-chip buffer providing a high input impedance, which allows direct connection to sensors and transducers, reducing the need for external components. The device's inherent flexibility is enhanced by its pseudo-differential input capability, which enables it to handle unipolar and bipolar signals, thus broadening its application scope.

Applications

This ADC is versatile and can be used in a variety of applications. Its precise conversion makes it suitable for data acquisition systems, such as test and measurement equipment. It is also commonly used in medical devices, including patient monitoring systems and diagnostic equipment, where accuracy is critical. In the industrial sector, the AD7682BCBZ-RL7 is often found in process control and automation systems, providing reliable performance even in demanding conditions.

In summary, the AD7682BCBZ-RL7 from Analog Devices Inc. is a robust, high-precision ADC that offers a blend of performance, power efficiency, and versatility, making it a top choice for engineers and designers across various industries.
