Analog Devices Inc. AD5677RBCPZ-1 Digital-to-Analog Converter

The AD5677RBCPZ-1, by Analog Devices Inc., is a high-precision, dual 12-bit digital-to-analog converter (DAC) designed to deliver exceptional performance and accuracy. Packaged in a compact LFCSP (Lead Frame Chip Scale Package), this device is ideal for space-constrained applications requiring high-resolution analog output. The AD5677RBCPZ-1 is part of a family of devices that offer different resolutions and channel counts, providing designers with a variety of options to meet their system requirements.

Key Features:

• Resolution: The device boasts a 12-bit resolution, ensuring fine-grained control over analog output signals.
• Channels: This DAC features two channels, allowing for dual simultaneous analog outputs, which is particularly useful for balanced signal applications or where two distinct analog signals are required.
• Interface: It incorporates a versatile I²C interface, facilitating easy communication with most microcontrollers and digital systems.
• Reference: An onboard, 2.5V, 2ppm/°C reference gives the DAC stable performance over a wide temperature range, reducing the need for external components and simplifying design.
• Power Supply: The AD5677RBCPZ-1 operates from a single 2.7V to 5.5V supply, making it compatible with a variety of logic levels and power arrangements.

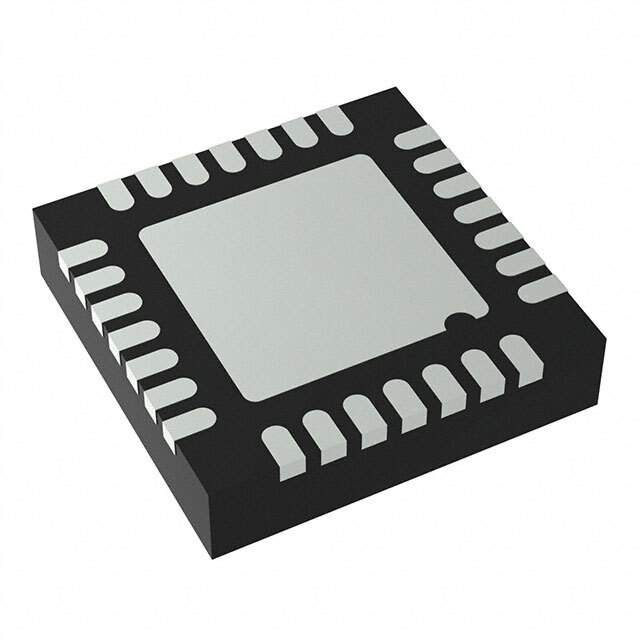

• Package: The compact LFCSP (3mm x 3mm) package is designed to minimize the footprint on PCBs, while still providing robust performance.

Applications:

• Automated Test Equipment (ATE)
• Medical Instruments
• Industrial Control Systems
• Portable Battery-Powered Devices
• Data Acquisition Systems

The AD5677RBCPZ-1 is a testament to Analog Devices Inc.'s commitment to providing high-quality, precision components for advanced electronic systems. Whether for industrial, medical, or consumer applications, this DAC offers a combination of performance, versatility, and reliability that engineers and designers can depend on. With its precision reference and dual-channel output, the AD5677RBCPZ-1 is an ideal solution for applications requiring accurate and stable analog voltage outputs.
