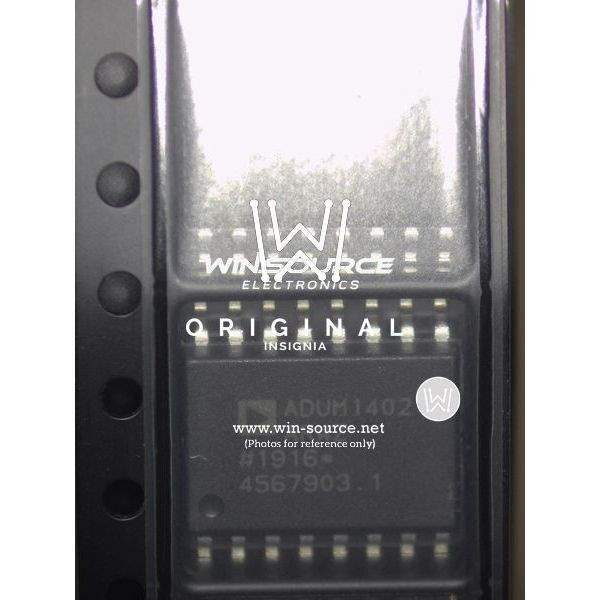

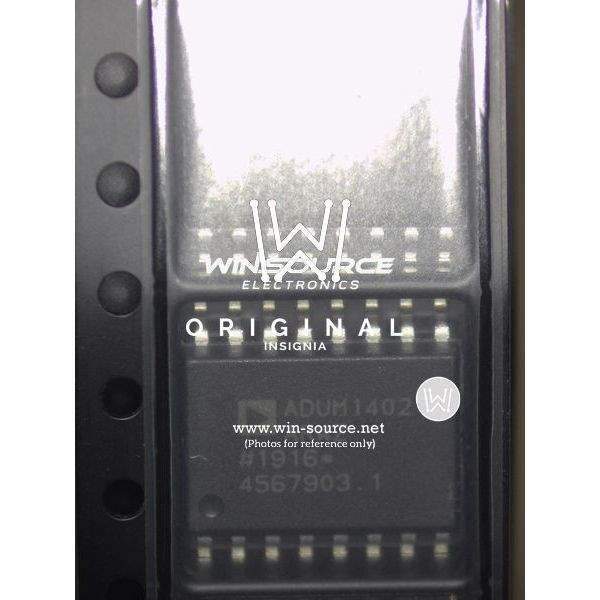

ADUM1402ARWZ-REEL

Part No ADUM1402ARWZ-REEL
Manufacturer Analog Devices Inc.
Catalog Hard To Find
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Reference Date Code 17+
Reference case SOP
Manufacturer Analog Devices Inc.
Manufacturer Homepage www.analog.com
Win Source Part Number 713466-ADUM1402ARWZ-REEL
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ADUM1402ARWZ-REEL CAD Model

Description

Overview of ADUM1402ARWZ-REEL

The ADUM1402ARWZ-REEL is a robust digital isolator product designed and manufactured by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This component is part of their iCoupler® family of products, which utilizes chip-scale transformer technology to achieve isolation between input and output signals, providing both safety and signal integrity in a wide array of applications.

Key Features

  • Quad-Channel Isolation: The ADUM1402ARWZ-REEL provides four independent isolation channels in a wide body 16-lead SOIC package, making it versatile for various multi-channel isolation needs.
  • High Data Rates: With support for data rates up to 10 Mbps, this digital isolator can easily handle high-speed digital signals, ensuring rapid and reliable communication between isolated domains.
  • High-Voltage Isolation: The device is capable of withstanding isolation voltages of up to 2.5 kVrms for 1 minute, offering excellent protection for sensitive circuitry.
  • Low Power Consumption: It is designed for efficiency, with low power operation that helps to conserve energy in power-sensitive designs.
  • Robustness: The ADUM1402ARWZ-REEL is characterized by high immunity to electromagnetic interference and features a wide temperature range of -40°C to +125°C, making it suitable for industrial environments.

Applications

The ADUM1402ARWZ-REEL is ideal for a broad range of applications where isolation is critical. These include:

  • Industrial automation and control systems
  • Medical equipment with stringent safety requirements
  • Isolated sensor interfaces
  • Data communication in harsh environments
  • Power supply management

Packaging and Availability

As indicated by the 'REEL' suffix in the product name, the ADUM1402ARWZ-REEL is provided in tape and reel packaging, which facilitates efficient handling and placement during the manufacturing process. This packaging is particularly useful for high-volume production environments.

In conclusion, the ADUM1402ARWZ-REEL from Analog Devices Inc. represents a high-performance solution for electrical isolation in demanding applications, with a feature set designed to deliver both safety and efficiency.
