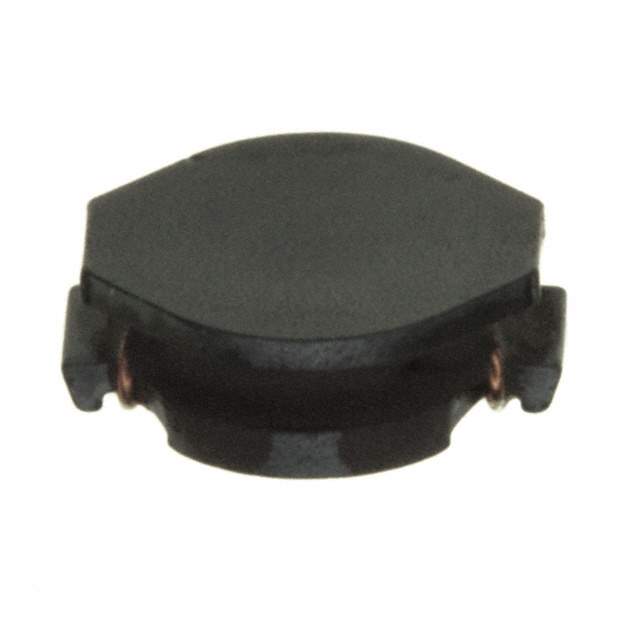

NRS6010T1R5MMGF Real Image
Same model may have multiple batches, images only for reference.

NRS6010T1R5MMGF

Part No NRS6010T1R5MMGF
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description SMD POWER INDUCTORS(NR SERIES/NR SERIES H TYPE/S TYPE/V TYPE)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Series NRS
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 1.5μH
Tolerance ±20%
Current Rating 1.9A
Current - Saturation 2.4A
Shielding Shielded
DC Resistance (DCR) 108 mOhm Max
Frequency - Self Resonant 77MHz
Operating Temperature Range -25°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package 2304 (6010 Metric)
Manufacturer Package 6060
Size 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Win Source Part Number 1232125-NRS6010T1R5MMGF
Manufacturer Homepage www.t-yuden.com/
Popularity Medium
Supply and Demand Status Limited
Family Name NR
Introduction Date October 25, 2011
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian NRS6010T1R5MMGF CAD Model

Description

This electronic component is an inductor coil manufactured by Taiyo Yuden.

  • Win Source Part Number: 1232125-NRS6010T1R5MMGF
  • Category: Inductor, coil, and choke
  • Series: NRS series
  • Packaging Type: Reel
  • Mounting Style: Surface mount device
  • Current Rating: 1.9A
  • Inductance: 1.5μH
  • Tolerance: ±20%
  • Operating Temperature Range: -25°C ~ 125°C
