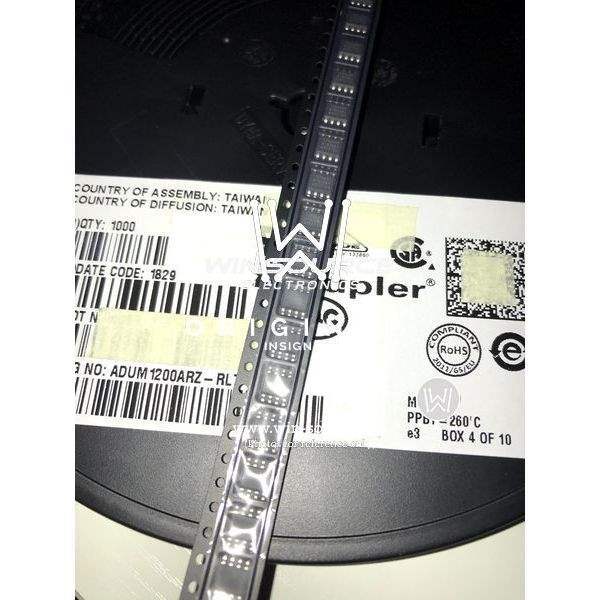

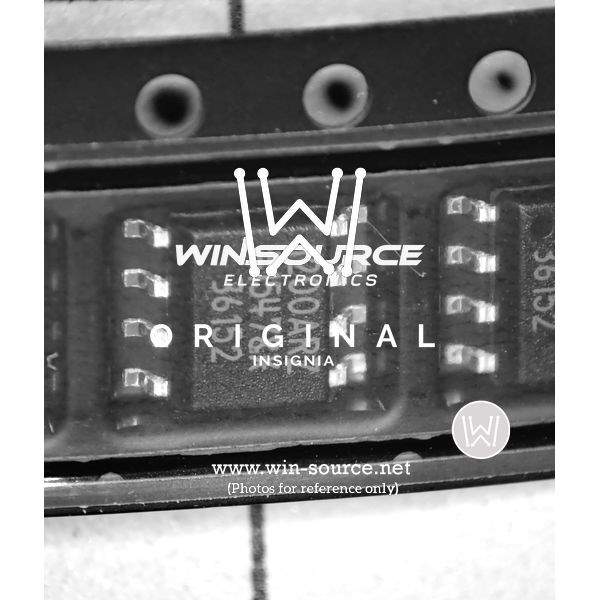

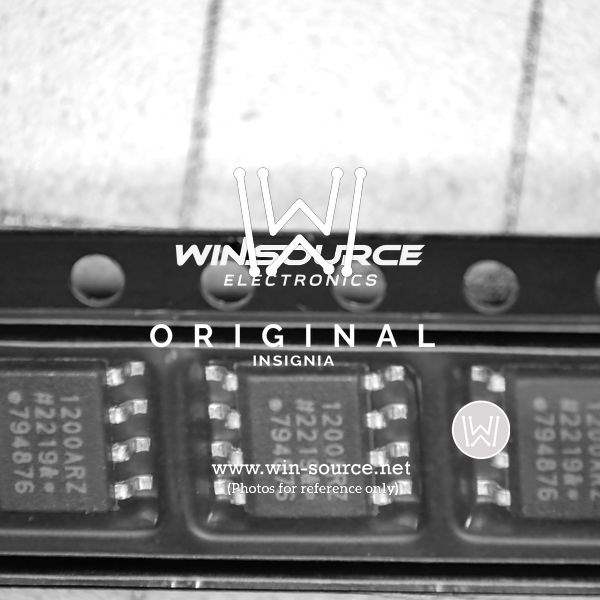

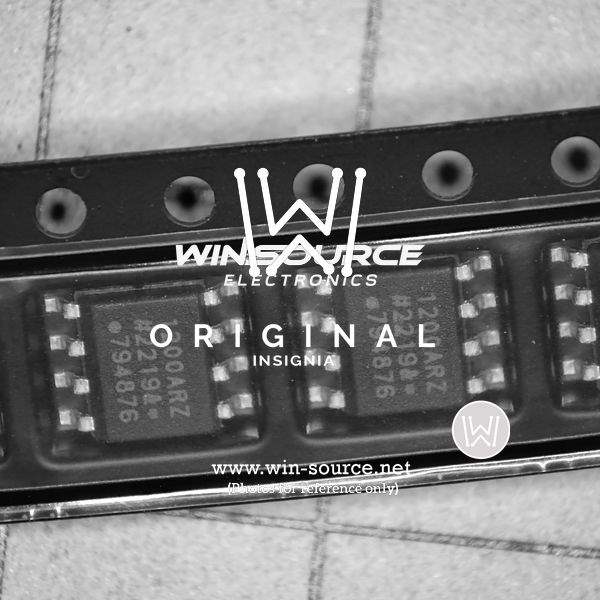

Analog Devices Inc. ADUM1200ARZ Digital Isolator

The ADUM1200ARZ is a robust digital isolator product designed and manufactured by Analog Devices Inc., a leader in high-performance semiconductors. This component is engineered to provide effective isolation between digital signal input and output, making it an essential part of applications that require electrical isolation for safety, noise immunity, and enhanced system reliability.

This isolator is based on Analog Devices' proprietary iCoupler® technology, which employs magnetic coupling to achieve isolation. This method allows the ADUM1200ARZ to offer the performance of an optocoupler with the added benefits of enhanced data rate capabilities and lower power consumption.

Key Features:

• Isolation Voltage: The device is rated for a high isolation voltage of 2500 Vrms, providing ample protection against high voltage transients and enabling its use in high-voltage environments.
• Channel Configuration: The ADUM1200ARZ offers a dual-channel setup in a bidirectional configuration, which means it can transmit two independent data streams in either direction simultaneously.
• High Data Rates: It supports data rates up to 10 Mbps, ensuring high-speed data transfer with minimal signal delay.
• Low Power Consumption: The device is optimized for low power operation, making it suitable for power-sensitive applications.
• Package: Housed in a compact 8-lead SOIC package, the ADUM1200ARZ is designed for space-saving on PCBs without compromising performance.

Applications:

• Industrial automation and control systems
• Medical equipment with stringent isolation requirements
• Power supply management
• Data communication systems
• Mixed voltage systems interfacing

With its combination of high isolation voltage, dual bidirectional channels, and high-speed data transfer capabilities, the ADUM1200ARZ is a versatile solution for a wide range of isolation challenges faced in modern electronic systems. Whether it's to protect sensitive components from high voltages or to ensure signal integrity in noisy environments, the ADUM1200ARZ from Analog Devices Inc. stands as a reliable and efficient choice for designers and engineers.
