Analog Devices ADUC843BCPZ8-3 MicroConverter

The ADUC843BCPZ8-3 is a highly integrated MicroConverter from Analog Devices Inc., designed for precision analog-to-digital conversion and microcontroller functionality in a single package. This robust component is ideal for applications requiring high accuracy measurement, control, and processing capabilities.

Key Features

• Precision Analog Microcontroller: Combines the functionality of a high-resolution ADC and an 8052 microcontroller core.
• Integrated 24-bit ADC: Features a 24-bit sigma-delta analog-to-digital converter with differential inputs, offering exceptional measurement accuracy.
• On-Chip Memory: Includes 62 kB of non-volatile Flash/EE memory, 4 kB of SRAM, and 8 kB of kernel ROM, providing ample space for complex applications and firmware updates.
• Dual-Mode Operation: Operates in both normal and download mode, allowing for in-circuit serial downloading of user programs.
• Multiple Communication Interfaces: Equipped with UART, SPI, and I²C interfaces for versatile communication with peripheral devices.
• On-Chip Debugging: Supports in-circuit emulation (ICE) for easy debugging and development.
• Low Power Consumption: Designed for power-sensitive applications with power-down and idle modes to conserve energy.
• Extended Temperature Range: Operates reliably over an industrial temperature range of -40°C to +85°C.

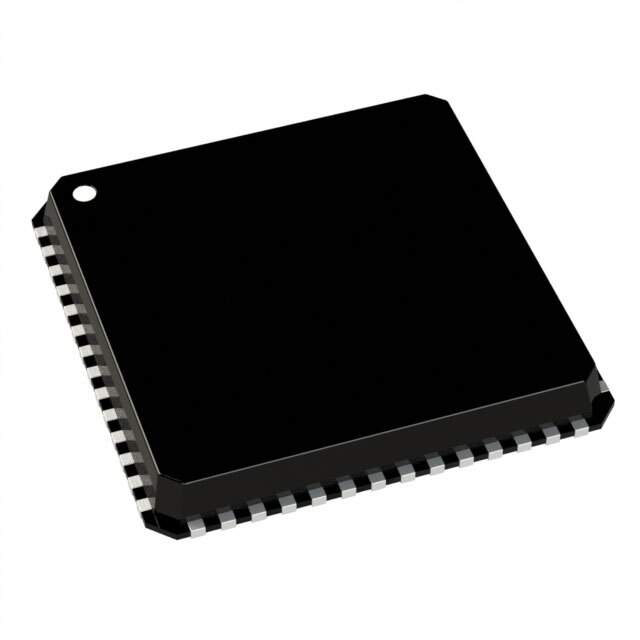

• Compact Package: Available in a 56-lead LFCSP (Lead Frame Chip Scale Package), minimizing board space requirements.

Applications

The ADUC843BCPZ8-3 is versatile and can be used in a wide range of applications, including:

• Industrial process control
• Precision instrumentation
• Smart sensing systems
• Data acquisition systems
• Portable medical devices

Conclusion

With its precision ADC, powerful microcontroller core, and rich set of features, the ADUC843BCPZ8-3 from Analog Devices Inc. is an excellent choice for designers who require a single-chip solution for sophisticated measurement and control tasks. Its integration capabilities and support for multiple communication protocols make it a versatile and efficient component for a variety of complex and demanding applications.
