The ADSP-BF706BCPZ-4 is a cutting-edge digital signal processor (DSP) from the renowned manufacturer Analog Devices Inc., designed to cater to a wide range of signal processing applications. This processor is part of the Blackfin family, which is well-known for its combination of a microcontroller architecture with a DSP, making it ideal for applications that require both control and signal processing functionalities.

Key Features:

• Core Performance: The ADSP-BF706BCPZ-4 boasts a core frequency of up to 400 MHz, providing robust processing capabilities for complex algorithms and applications.
• Memory: Equipped with 128 KB L1 SRAM and 256 KB L2 SRAM, this processor ensures ample memory for real-time data processing and storage, enhancing system performance.
• Peripheral Set: With a rich set of peripherals, including UART, SPI, I2C, CAN, and USB interfaces, this DSP offers versatile connectivity options for various external devices and systems.
• Power Efficiency: The device is designed with power efficiency in mind, featuring dynamic power management that helps reduce power consumption during operation.

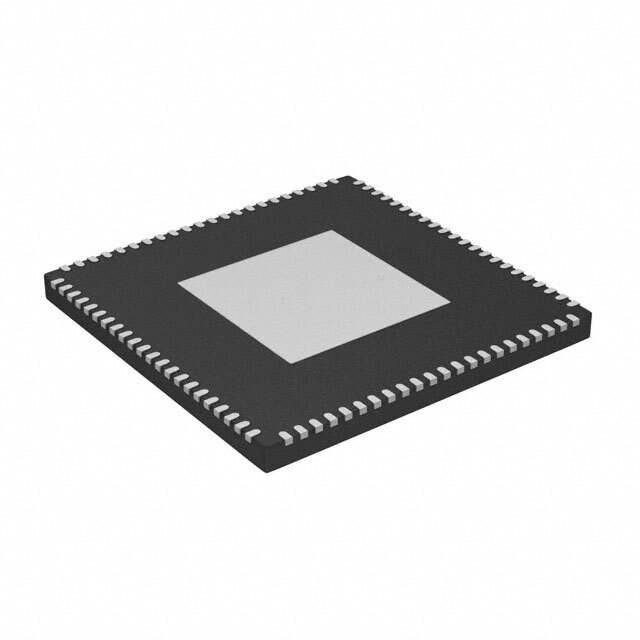

• Package: The ADSP-BF706BCPZ-4 comes in a compact 88-LFCSP (Lead Frame Chip Scale Package), which is ideal for space-constrained applications.

Applications:

The ADSP-BF706BCPZ-4 is suitable for a diverse array of applications, including but not limited to:

• Industrial control and automation
• Audio and video processing
• Medical instrumentation
• Automotive systems
• Instrumentation and measurement devices

Conclusion:

The ADSP-BF706BCPZ-4 from Analog Devices Inc. is a versatile and high-performance signal processor that delivers exceptional computational power, a rich peripheral set, and power efficiency. Its integration of control and DSP capabilities within a single chip makes it an excellent choice for engineers looking to streamline their designs and achieve optimal performance in a wide range of signal processing applications.
