Analog Devices Inc. ADSP-BF609KBCZ-5 Dual Core Blackfin Digital Signal Processor

The ADSP-BF609KBCZ-5 is a high-performance digital signal processor (DSP) from Analog Devices Inc., designed to deliver efficient, dynamic processing for a variety of embedded applications. It is part of the Blackfin family of products, renowned for their exceptional signal processing capabilities and power efficiency. This particular model features a dual-core architecture that allows for simultaneous data processing, making it an ideal choice for complex, multitasking environments.

With a clock speed of 500 MHz, the ADSP-BF609KBCZ-5 provides a robust platform for rapid computation, which is essential for real-time signal processing tasks. The processor is built on a 32-bit, non-von Neumann microarchitecture, which supports RISC-like register and instruction efficiency along with flexible DSP capabilities. This unique combination enables the processor to excel in applications that require both control and signal processing performance, such as multimedia, audio, video, voice, and image processing.

The device integrates 1MB of L2 SRAM, which can be configured as cache or directly mapped memory, providing the flexibility to optimize performance based on specific application needs. Additionally, it includes 136KB of L1 memory, divided equally between the two cores, and supports a wide range of external memory interfaces, including DDR2 and DDR3, which are crucial for applications with large data sets or those requiring high-speed data transfer.

Furthermore, the ADSP-BF609KBCZ-5 is equipped with a rich set of peripherals, including Gigabit Ethernet MAC, USB 2.0, CAN, SPI, UART, and more, enabling easy integration with other components in embedded systems. It also offers advanced security features, such as secure boot and cryptography accelerators, ensuring that applications are protected from unauthorized access and data breaches.

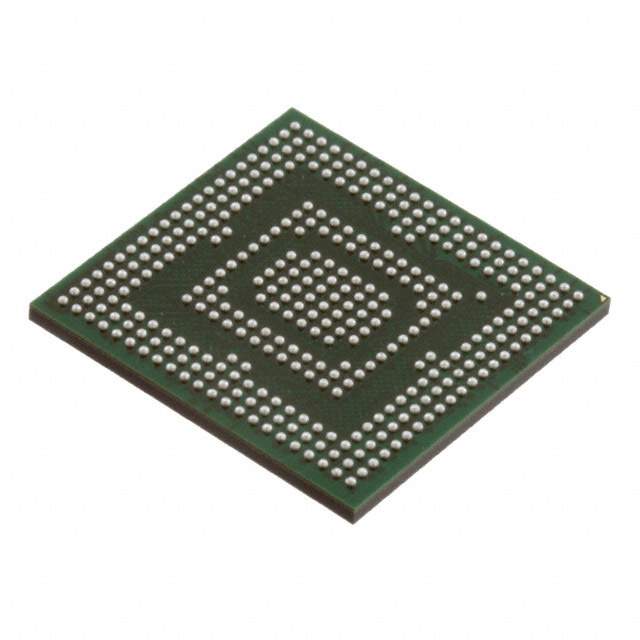

The processor comes in a 256-ball CSPBGA package, which is designed for space-constrained applications while still providing the necessary I/O connectivity. The ADSP-BF609KBCZ-5 operates over an industrial temperature range, making it suitable for use in harsh environments where reliability and durability are paramount.

In summary, the ADSP-BF609KBCZ-5 from Analog Devices Inc. is a powerful, versatile, and reliable DSP that offers a perfect balance of performance, power efficiency, and security, making it an excellent choice for a wide array of embedded processing applications.
