ADSP-BF514BBCZ-4F4: High-Performance Digital Signal Processor

The ADSP-BF514BBCZ-4F4 is a cutting-edge digital signal processor (DSP) from the renowned manufacturer Analog Devices Inc. This processor is part of the Blackfin family, which is known for its high performance, signal processing capabilities, and power efficiency. It is an ideal solution for a variety of applications, including automotive, industrial, medical, and communication systems.

Key Features

• Core Performance: The ADSP-BF514BBCZ-4F4 operates at a core frequency of 400MHz, providing robust processing power for complex algorithms and data-intensive tasks.
• Memory: It includes 116KB of on-chip memory, which is divided into 64KB of L1 instruction memory, 32KB of L1 data memory, and 20KB of L2 memory, ensuring efficient data handling and storage capabilities.
• Peripheral Set: This DSP is equipped with a rich set of peripherals, including UART, SPI, SPORT, PPI, and CAN interfaces, allowing for flexible connectivity options and easy integration into various systems.
• Power Management: With dynamic power management options and a sleep mode feature, the ADSP-BF514BBCZ-4F4 ensures power consumption is kept to a minimum, making it suitable for battery-powered devices.

Advanced Signal Processing

The processor's advanced signal processing capabilities are a result of its innovative architecture, which combines control processing with digital signal processing. This allows the ADSP-BF514BBCZ-4F4 to execute complex algorithms efficiently, making it perfect for applications requiring fast and accurate signal processing, such as audio and video processing, sensor data analysis, and real-time control systems.

Development Support

Analog Devices Inc. provides extensive development support for the ADSP-BF514BBCZ-4F4, including software development tools, emulators, and evaluation boards. Developers can leverage these tools to accelerate the development process and bring their products to market faster.

Package and Temperature Range

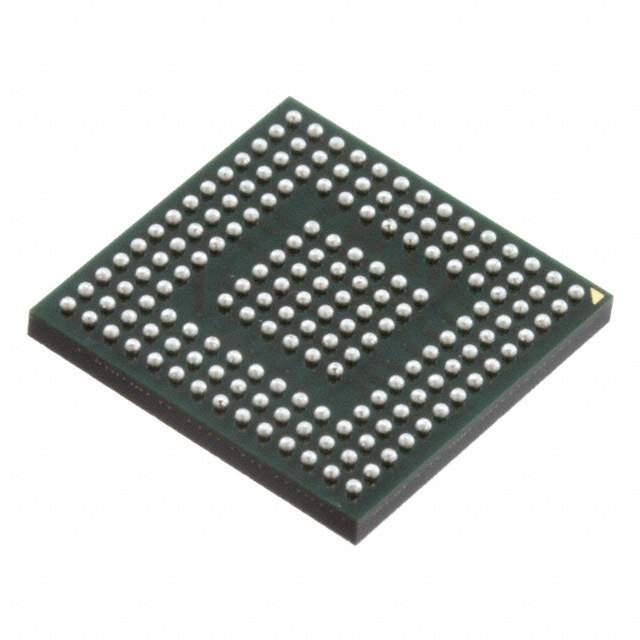

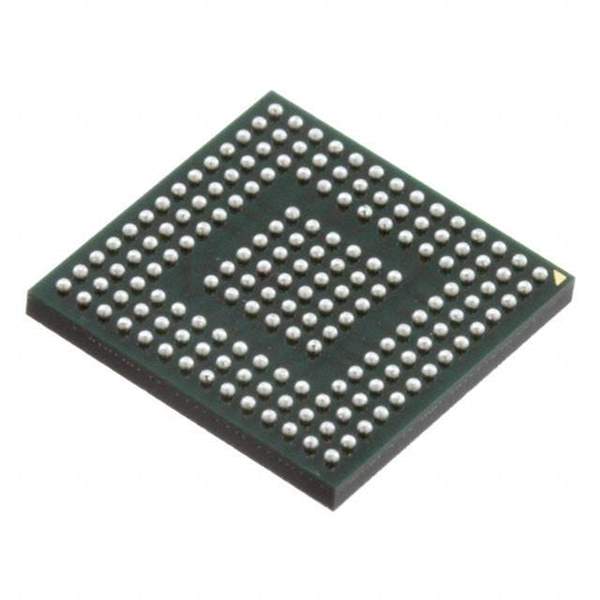

The ADSP-BF514BBCZ-4F4 is available in a 208-ball CSPBGA package, ensuring compact size and reliability. It is designed to operate in the industrial temperature range of -40°C to +85°C, making it robust and suitable for harsh environments.

In summary, the ADSP-BF514BBCZ-4F4 from Analog Devices Inc. is a powerful, efficient, and versatile digital signal processor that meets the demands of modern high-performance embedded systems. Its combination of processing power, memory, and peripherals, along with robust development support, makes it an excellent choice for engineers and developers looking to create sophisticated applications.
