ADRF5027BCCZN - High-Performance RF Switch by Analog Devices Inc.

The ADRF5027BCCZN is a cutting-edge RF switch brought to you by Analog Devices Inc., a leader in high-performance analog technology. This product is designed for demanding applications requiring high linearity, robust performance, and wide frequency range. It is a perfect fit for systems in the aerospace, defense, and telecommunications sectors, as well as for test equipment and automated test equipment (ATE) applications.

The ADRF5027BCCZN operates over a broad frequency range from 9 kHz to 44 GHz, making it highly versatile for a variety of RF signal routing needs. It features a reflective SPDT (Single-Pole, Double-Throw) configuration, offering users the flexibility to switch between two output ports from a single input. The switch is controlled via a single positive voltage control input, simplifying the interface and reducing the complexity of the control circuitry.

This RF switch boasts exceptional performance characteristics, including low insertion loss and high isolation, which are critical for maintaining signal integrity in high-frequency applications. The ADRF5027BCCZN also offers impressive linearity, with high input power handling capability, ensuring minimal distortion even at elevated power levels. Its fast switching speed allows for rapid signal routing, which is essential in applications where timing and response are critical.

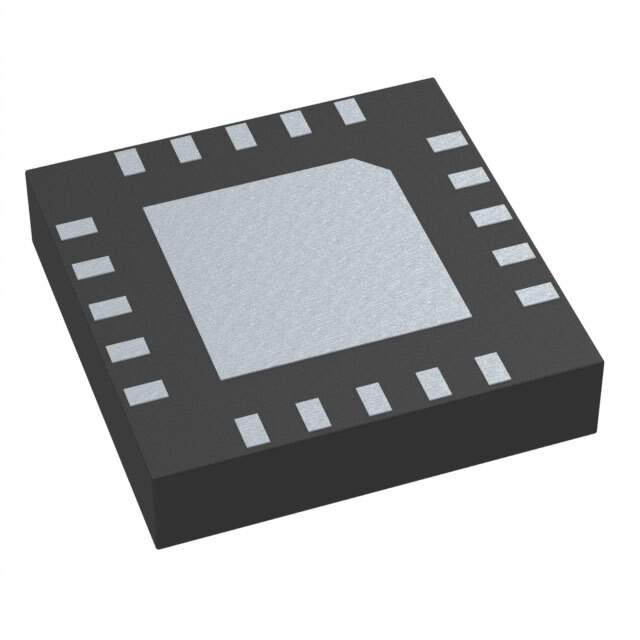

Encased in a compact 3 mm x 3 mm LGA package, the ADRF5027BCCZN is designed to occupy minimal board space while delivering maximum performance. It is fabricated using a silicon process that ensures high reliability and repeatability, characteristics synonymous with Analog Devices' products.

The ADRF5027BCCZN also features an extended temperature range, making it suitable for operation in harsh environments. Its robust design is complemented by ESD protection, safeguarding the device from electrostatic discharge events during handling and operation.

In summary, the ADRF5027BCCZN from Analog Devices Inc. is an exceptional RF switch solution that offers a combination of performance, reliability, and versatility. It is an ideal choice for engineers looking to enhance their RF signal routing capabilities in high-frequency applications.
