ADPA1112AEJZ Analog Devices
Same model may have multiple batches, images only for reference.

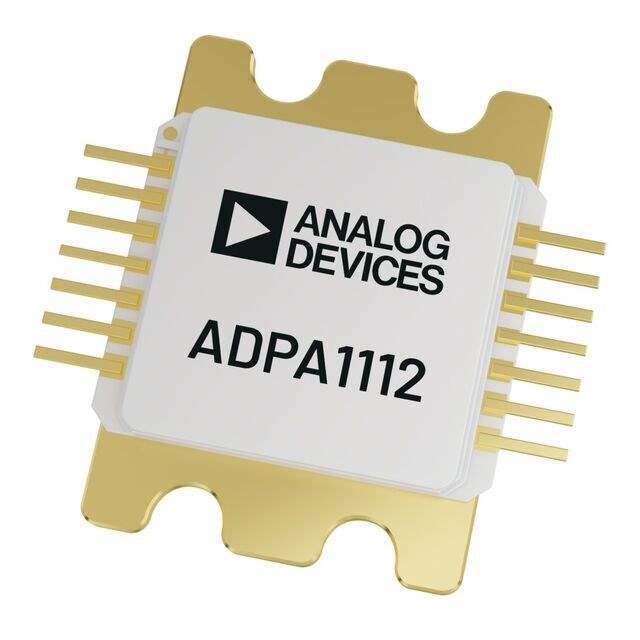

ADPA1112AEJZ

Part No ADPA1112AEJZ
Manufacturer Analog Devices Inc.
Catalog RF Amplifiers
Description 1-22GHZ 15W PA
Datasheet
ADPA1112AEJZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

The ADPA1112 is a 1GHz to 22GHz wideband power amplifier with a saturated output power (POUT) of 42dBm, power added efficiency (PAE) of 25%, and a power gain of 14dB typical from 8GHz to 16GHz at input power (PIN) of 28.0dBm. The RF input and RF output are internally matched and AC-coupled. A drain bias voltage (VDD) of 28V is applied to the VDD1 and VDD2 pins, which have integrated bias inductors. The drain current is set by applying a negative voltage to the VGG1 pin. A temperature-compensated RF detector is integrated allowing monitoring of the RF output power.
