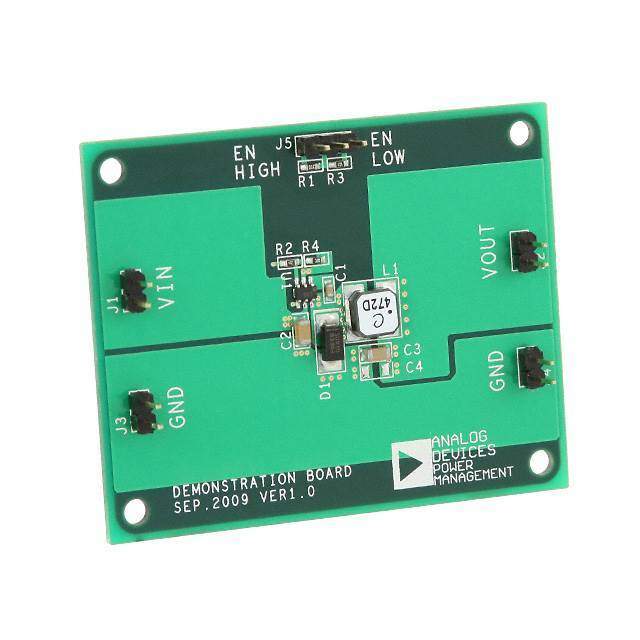

ADP2301-EVALZ Evaluation Board from Analog Devices Inc.

The ADP2301-EVALZ is a comprehensive evaluation platform designed for testing the capabilities and performance of the ADP2301, a robust step-down DC-to-DC switching regulator from Analog Devices Inc. This evaluation board is an essential tool for engineers and designers who require an efficient power management solution for their electronic applications.

Key Features of the ADP2301-EVALZ:

• High Efficiency: The ADP2301 regulator is capable of delivering up to 1.2 A of output current with efficiencies as high as 95%, making it an excellent choice for power-sensitive applications.
• Wide Input Voltage Range: The board operates over a broad input voltage range from 4.5 V to 20 V, accommodating a variety of power sources and ensuring versatility across different use cases.
• Adjustable Output Voltage: Users can set the output voltage from 0.8 V to 18 V to match the requirements of the target application, providing a flexible power solution.
• Integrated Synchronization and Enable Pin: The synchronization pin allows for the reduction of radiated electromagnetic interference by synchronizing the switching frequency to an external clock. The enable pin offers simple on/off control.
• Protection Features: The board includes built-in overcurrent protection, thermal shutdown, and undervoltage lockout, ensuring safe operation under various conditions.
• Easy to Use: The evaluation board comes with pre-installed components and a comprehensive layout, facilitating quick and straightforward testing.

Applications:

The ADP2301-EVALZ is ideal for a wide range of applications, including:

• Point of load conversions
• Communications infrastructure
• Industrial and instrumentation equipment
• Healthcare and medical devices

With the ADP2301-EVALZ evaluation board, developers can rapidly prototype and test the performance of the ADP2301 switching regulator in their specific applications. The board's user-friendly design, combined with the high-performance features of the ADP2301, makes it a valuable asset for achieving efficient power management in electronic designs.

For more information and detailed specifications, please visit the Analog Devices Inc. website or consult the ADP2301-EVALZ user guide and datasheet.
