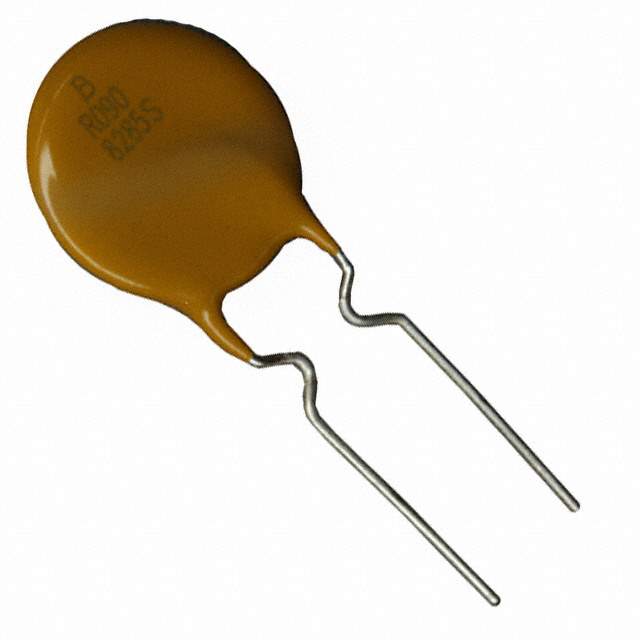

MF-R090-AP Real Image
Same model may have multiple batches, images only for reference.

MF-R090-AP

Part No MF-R090-AP
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE
Datasheet
MF-R090-AP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging AMMO PACKAGE
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 900mA
Current - Trip (It) 1.8A
Time to Trip 7.2s
Resistance - Initial (Ri) (Min) 140 mOhm
Resistance - Post Trip (R1) (Max) 470 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.461" L x 0.122" W (11.70mm x 3.10mm)
Height - Seated (Max) 0.657" (16.70mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 1075789-MF-R090-AP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MF-R090-AP CAD Model

Description

The Bourns Inc. 1075789-MF-R090-AP is a polymeric circuit protection product that is perfect for use in various applications.

  • Manufacturer: Bourns Inc.
  • Product Name: 1075789-MF-R090-AP
  • Approvals: cURus and TUV
  • Maximum Voltage: 60V
  • Maximum Current: 40A
  • Current Hold: 900mA
  • Current Trip: 1.8A
  • Time to Trip: 7.2s
  • Category: Circuit Protection
  • Popularity: Medium
  • Regulations: Affected by REACH regulations
  • Supply and Demand: Balance
