ADP1650ACBZ-R7: A High-Efficiency, Synchronous, Step-Up LED Driver from Analog Devices Inc.

The ADP1650ACBZ-R7 is a cutting-edge LED driver IC manufactured by Analog Devices Inc., designed to deliver high performance and efficiency for portable and compact applications. This device is part of the ADP1650 series, which is known for its ability to drive high-brightness LEDs with precise current control, making it an ideal solution for camera flash and torch functionality in smartphones, digital cameras, and other portable devices.

Key Features

• Integrated Synchronous Rectifier: The ADP1650ACBZ-R7 incorporates an internal synchronous rectifier, which helps to improve efficiency by reducing power loss during the rectification process.
• High Efficiency: This LED driver is optimized for high efficiency, capable of delivering up to 92% efficiency in typical applications. This feature ensures extended battery life in portable devices.
• Flexible Power Source: It can operate from a single-cell lithium-ion battery or a 2.5V to 5.5V input, providing versatility in various power environments.
• Adjustable Output Voltage: The output voltage is adjustable up to 20V, which allows the device to drive multiple LEDs in series, ensuring uniform brightness and consistent performance.
• Strobe and Torch Modes: The ADP1650ACBZ-R7 supports both strobe and torch modes, with programmable current levels to cater to different lighting requirements.

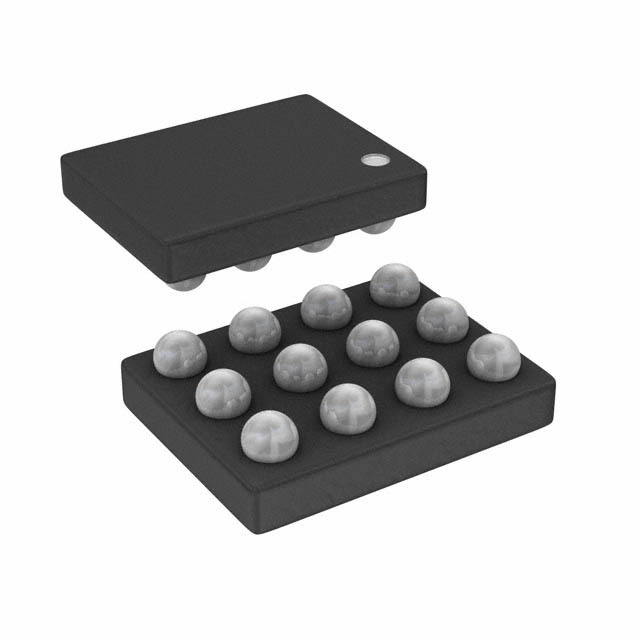

• Small Footprint: Housed in a compact 12-ball WLCSP (Wafer Level Chip Scale Package), the device requires minimal space on a printed circuit board, which is crucial for space-constrained applications.

Protection Features

• Thermal Shutdown: To ensure device and system safety, the ADP1650ACBZ-R7 has a built-in thermal shutdown mechanism that activates when the junction temperature exceeds safe limits.
• Overvoltage Protection: The device also includes overvoltage protection, which prevents damage to the LEDs and the driver in case of unexpected voltage spikes.
• Soft Start: The soft start feature limits inrush current during startup, contributing to the overall reliability and longevity of the device.

The ADP1650ACBZ-R7 from Analog Devices Inc. is a robust solution for driving high-power LEDs with efficiency and precision. Its comprehensive feature set and protection mechanisms make it a top choice for designers looking to enhance the lighting capabilities of their portable and compact electronic devices.
