Product Overview: ADP151ACPZ-1.8-R7

The ADP151ACPZ-1.8-R7 is a high-performance, low-dropout linear regulator manufactured by Analog Devices Inc., one of the leading companies in the semiconductor industry. This regulator is designed to provide a stable and reliable power supply for sensitive electronic components, with a fixed output voltage of 1.8V.

Key Features

• High Accuracy: The ADP151ACPZ-1.8-R7 offers a precision output voltage with high accuracy, ensuring that the connected components receive a stable voltage supply.
• Low Dropout: With its low dropout performance, this regulator operates efficiently even when the input-to-output voltage differential is small, making it ideal for battery-powered applications where maximizing battery life is crucial.
• Low Noise: This device is optimized for noise-sensitive applications, providing a low-noise power solution that helps to maintain the integrity of sensitive signal paths.
• High PSRR (Power Supply Rejection Ratio): The ADP151ACPZ-1.8-R7 features a high PSRR, which makes it capable of suppressing variations in the input voltage, delivering a more stable output.
• Thermal Overload Protection: To ensure the longevity and reliability of the device, it comes with built-in thermal overload protection that safeguards the regulator from damage due to overheating.
• Current Limit Protection: The regulator also features current limit protection, which prevents damage to the device and the downstream components in the event of an output overload.

Applications

The ADP151ACPZ-1.8-R7 is versatile and can be used in a wide range of applications, including:

• Portable and battery-powered devices
• Medical and healthcare equipment
• Telecommunications infrastructure
• Data acquisition systems
• High-end audio and video equipment

Package and Reliability

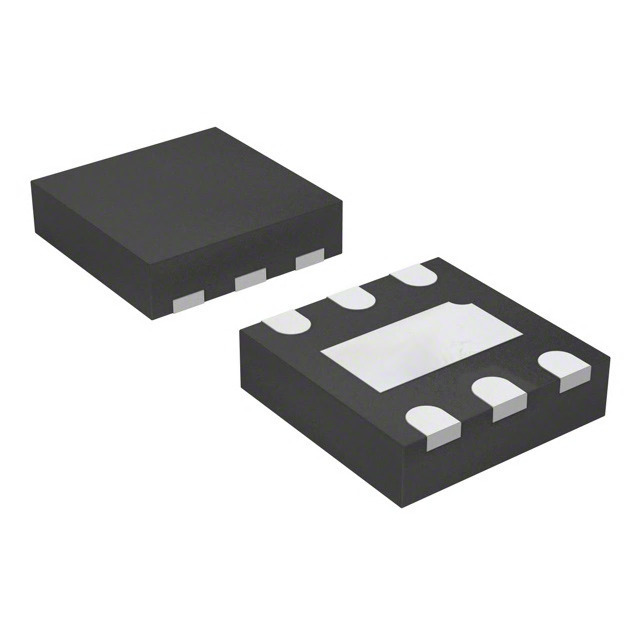

This regulator is available in a compact, lead-frame chip scale package (LFCSP), which is not only space-saving but also offers excellent thermal performance. The ADP151ACPZ-1.8-R7 operates over a wide temperature range and has been rigorously tested to meet the high standards set by Analog Devices Inc., ensuring reliable performance in a variety of environmental conditions.

With its combination of performance, efficiency, and reliability, the ADP151ACPZ-1.8-R7 from Analog Devices Inc. is an excellent choice for designers looking to optimize their power management solutions.
