The ADN2817ACPZ from Analog Devices Inc. is a versatile and high-performance Continuous Rate Clock and Data Recovery (CDR) integrated circuit designed to support a wide range of data rates and standards. This device provides robust signal conditioning and timing recovery for applications in fiber optic receivers, which makes it an ideal choice for telecommunications, data communications, and networking infrastructure.

Key Features:

• Automatic Rate Detection: The ADN2817 automatically locks to all data rates without the need for an external reference clock or programming from a microprocessor.
• Data Rate Range: It supports a continuous data rate range from 6.25 Mbps to 12.5 Gbps, which covers a variety of protocols and standards.
• Jitter Performance: Exceptional jitter cleaning and tolerance ensure reliable operation even in the presence of high levels of input jitter.
• Signal Conditioning: The device includes features such as programmable equalization and a limiting amplifier, which help to improve signal integrity.
• Loss of Signal Detection: It can detect loss of signal conditions, providing an additional layer of reliability for system operations.

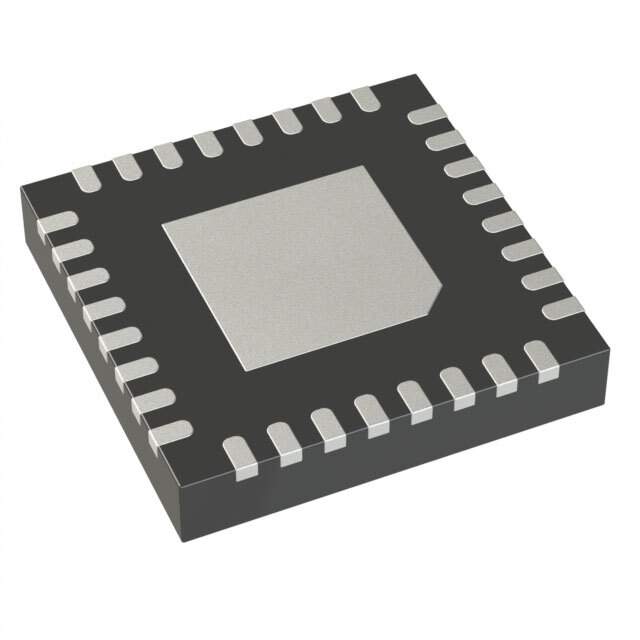

• Package: The ADN2817ACPZ is offered in a compact 32-lead LFCSP (Lead Frame Chip Scale Package) which is suitable for space-constrained applications.

Applications:

• SONET/SDH and Ethernet Receivers
• Fiber Channel and InfiniBand
• Broadband Wireless and Wireline Systems
• Test and Measurement Equipment

The ADN2817 provides a reliable and efficient solution for extracting clock and data signals from a noisy environment. Its ability to function without an external reference clock and its support for a broad range of data rates make it a highly flexible choice for designers working on multi-rate optical receivers and other high-speed communication equipment.

With its advanced features and reliable performance, the ADN2817ACPZ from Analog Devices Inc. is a critical component for ensuring the integrity and precision of high-speed data communication in modern networking infrastructure.
