ADM708TARZ-REEL - Voltage Monitoring Microprocessor Supervisory Circuit

The ADM708TARZ-REEL, manufactured by Analog Devices Inc., is a high-performance microprocessor supervisory circuit designed to monitor power supplies in microprocessor systems. It provides a significant layer of protection to digital systems by ensuring that the microprocessor is reset to a known state during power-up, power-down, or if a brownout condition occurs. This component is an essential element for maintaining system integrity and preventing potential data corruption or system failures.

With its precision voltage monitoring capability, the ADM708TARZ-REEL monitors the system voltage and maintains a reset output until the system voltage has stabilized at the correct level for a reliable system startup. This reset signal continues to be asserted for a minimum of 200ms after the system voltage exceeds the reset threshold level, ensuring a proper reset pulse width.

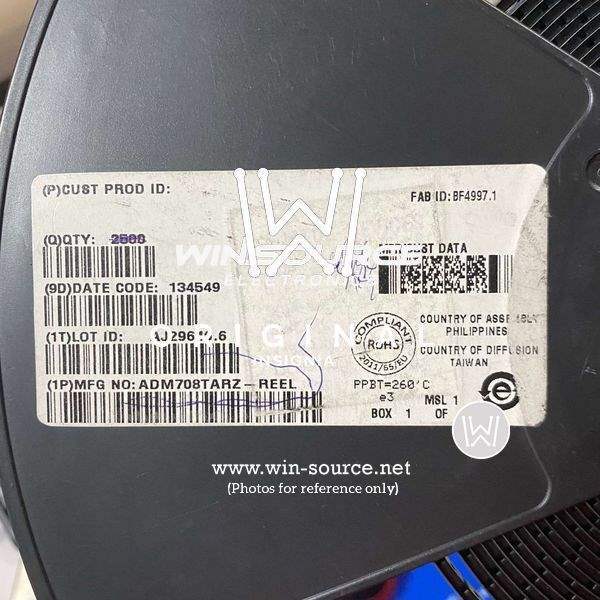

The ADM708TARZ-REEL comes in a convenient surface-mount package, specifically in a tape and reel format (REEL suffix), which is suitable for automated assembly processes. It is designed to operate over a wide temperature range, making it an ideal choice for applications that require reliable operation under varying environmental conditions.

Key features of the ADM708TARZ-REEL include:

• Watchdog timer to ensure the system microprocessor is operating correctly.
• Manual reset input for triggering a system reset remotely.
• Low supply current, making it suitable for power-sensitive applications.
• Reset threshold options to accommodate different system requirements.
• Wide operating voltage range to support various microprocessor systems.

This supervisory circuit is ideal for use in microprocessor-based systems, such as computers, embedded systems, and industrial controllers, where reliable operation is critical. The ADM708TARZ-REEL ensures that all system components are reset simultaneously and properly during a power-up or brownout event, which is crucial for maintaining system stability and preventing data loss or corruption.

Overall, the ADM708TARZ-REEL by Analog Devices Inc. is a robust and reliable solution for system voltage monitoring and microprocessor supervision, ensuring that your digital systems operate with the highest level of integrity and stability.
