ADM3202ARUZ-REEL7 - Analog Devices Inc.

The ADM3202ARUZ-REEL7 is a high-performance, low-power, RS-232/V.28 transceiver from Analog Devices Inc., designed to operate from a single 3.3V power supply. This makes it ideal for portable or space-constrained applications such as PDAs, laptops, and handheld communication devices. Its low operational voltage also helps to conserve power, extending battery life in portable solutions.

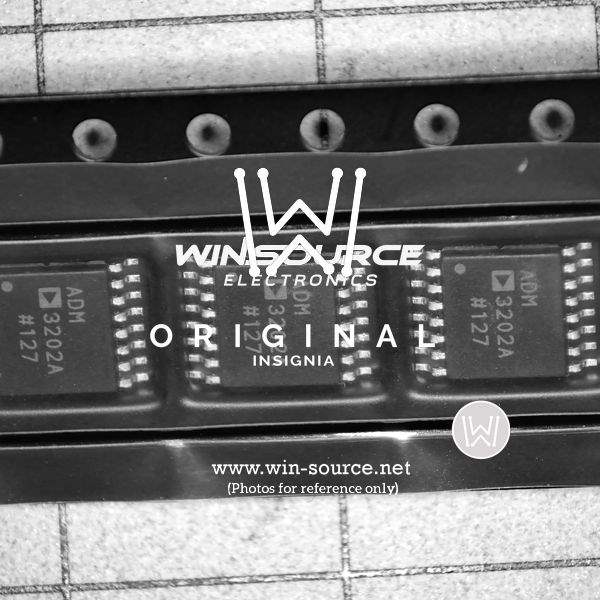

This transceiver is part of Analog Devices' ADM3202 series, which is known for its reliability and robustness in data transmission. The ADM3202ARUZ-REEL7 comes in a compact 16-lead TSSOP (Thin Shrink Small Outline Package) which is suitable for situations where board space is at a premium.

Featuring two drivers and two receivers, the ADM3202ARUZ-REEL7 can operate at data rates up to 460 kbps, providing high-speed data transfer for a variety of communication protocols. The device also includes a shutdown mode that reduces power consumption when not in active use, further optimizing power efficiency for battery-powered devices.

Protection features are a hallmark of this transceiver, with enhanced electrostatic discharge (ESD) protection up to ±15 kV on the driver and receiver lines. This ensures that the device can withstand the rigors of real-world environments where ESD events are common, protecting the integrity of the data and the longevity of the component.

The ADM3202ARUZ-REEL7 also incorporates a proprietary charge pump circuit that generates the necessary RS-232 voltage levels (+/-12V) from a single 3.3V supply, eliminating the need for additional power supplies and simplifying circuit design. The charge pump requires only four small 0.1 µF external capacitors, which reduces the overall component count and board space.

With its combination of high-speed operation, low-power consumption, small form factor, and robust protection features, the ADM3202ARUZ-REEL7 is an excellent choice for engineers and designers looking for a reliable transceiver for RS-232 communication in portable or space-sensitive applications.

For more detailed specifications and application information, designers are encouraged to consult the ADM3202ARUZ-REEL7 datasheet available on the Analog Devices Inc. website.
