The ADL5811ACPZ-R7 is a state-of-the-art active mixer component manufactured by Analog Devices Inc., designed to cater to a wide array of RF (Radio Frequency) and IF (Intermediate Frequency) applications. This high-performance device is well-suited for modern communication systems that require a compact, efficient, and reliable mixing solution.

Key Features

• Frequency Range: The ADL5811ACPZ-R7 offers a broad frequency range, making it versatile for various applications including cellular, satellite, and broadband communications.
• Conversion Gain: This mixer provides a high conversion gain, which helps in maintaining signal integrity by boosting the signal levels when required.
• Single-ended RF/LO Inputs: The device simplifies the design by allowing single-ended inputs, which reduces the need for external components and circuit complexity.
• High Linearity: It features excellent linearity, ensuring that the signal quality is preserved even at high input power levels without causing significant distortion.
• Low Noise Figure: The ADL5811ACPZ-R7 boasts a low noise figure, which is crucial for maintaining a high Signal-to-Noise Ratio (SNR) in the system.

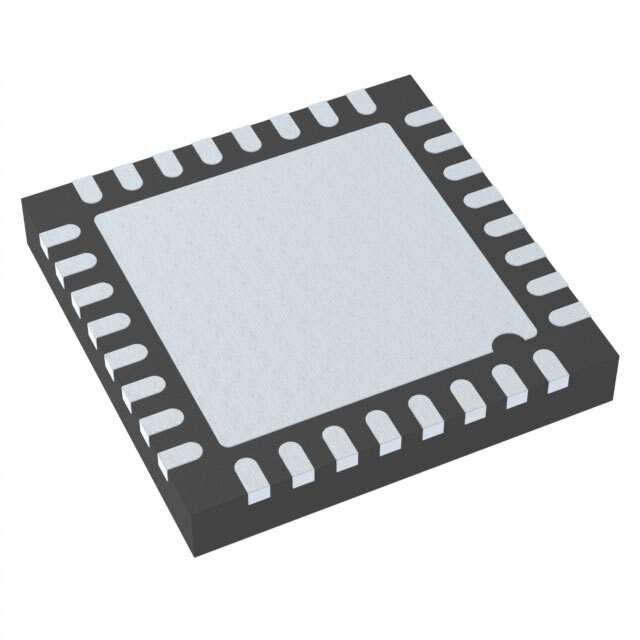

• Package: Housed in a compact LFCSP (Lead Frame Chip Scale Package), this device is an ideal choice for space-constrained applications.

Applications

• Wireless Infrastructure
• Point-to-Point and Point-to-Multipoint Radios
• Public Safety Radios
• Instrumentation
• Satellite Communications

The ADL5811ACPZ-R7 is a testament to Analog Devices Inc.'s commitment to providing innovative and high-quality components for the electronics industry. With its robust performance and versatile features, this active mixer is an excellent choice for designers looking to enhance their RF and IF signal processing capabilities.

Ordering Information

The product is available in a RoHS-compliant package and is designated by the part number ADL5811ACPZ-R7. For purchasing information, pricing, and availability, please contact Analog Devices Inc. or an authorized distributor.
