The ADL5605ACPZ-R7 is a high-performance, dual-channel RF/IF gain block amplifier designed and manufactured by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This amplifier is ideally suited for a wide range of applications, including telecommunications, base stations, satellite communications, and test equipment.

Key Features

• Frequency Range: The ADL5605 operates over a broad frequency range from 50 MHz to 4000 MHz, making it highly versatile for various RF and IF applications.
• Gain: It provides a fixed gain of 15 dB, which allows for signal amplification with minimal external components.
• Integrated Active Bias: The on-chip active bias circuitry ensures stable performance over temperature and process variations.
• Output IP3: The device features an outstanding third-order intercept (OIP3) of 47 dBm at 1900 MHz, providing excellent linearity for complex signal environments.
• Single-ended Input and Output: This configuration simplifies the integration into RF systems by reducing the need for external baluns or matching networks.

Package and Supply

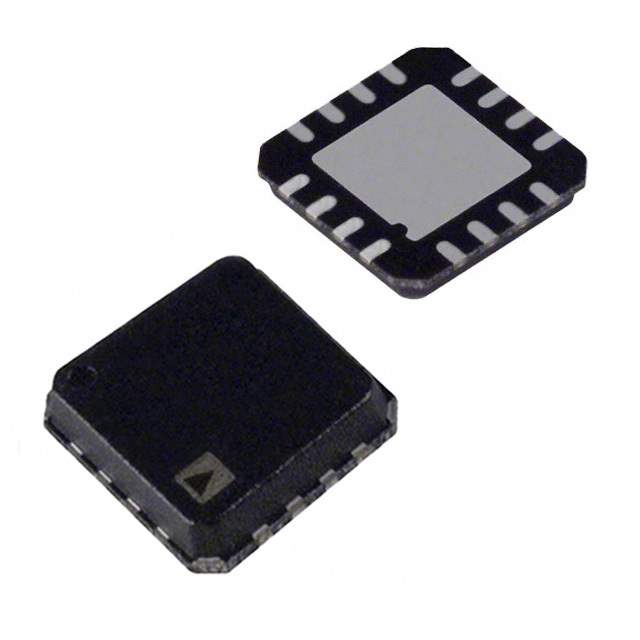

The ADL5605ACPZ-R7 comes in a compact 3 mm × 3 mm, 16-lead LFCSP (Lead Frame Chip Scale Package) that is RoHS compliant and specified for the -40°C to +85°C temperature range. It operates on a single 5 V supply, which is typical for this class of RF amplifiers, providing ease of use in various system designs.

Applications

• Wireless infrastructure (GSM, CDMA, LTE, etc.)
• Repeaters and DAS (Distributed Antenna Systems)
• General-purpose RF and IF amplification
• Test equipment and instrumentation

Conclusion

The ADL5605ACPZ-R7 from Analog Devices Inc. is an excellent choice for designers looking for a reliable and high-performance RF/IF gain block amplifier. Its wide frequency range, stable gain, and excellent linearity make it a versatile component for numerous applications in the rapidly evolving RF and telecommunications industry.
