Product Overview: ADL5602ARKZ-R7 by Analog Devices Inc.

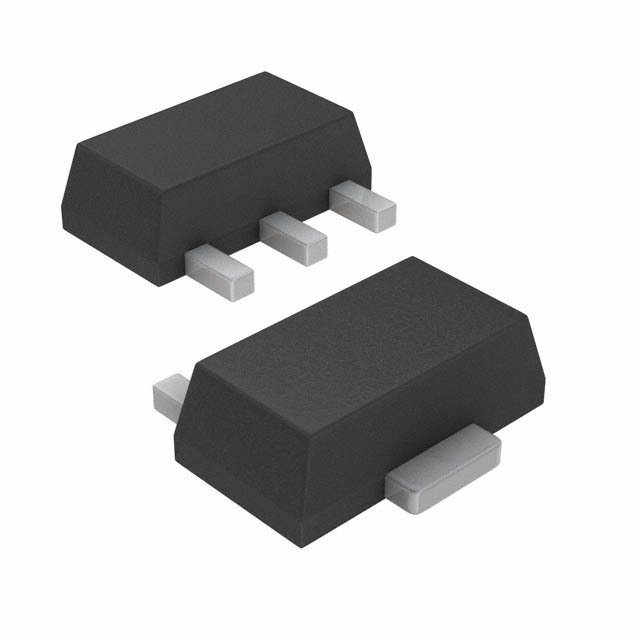

The ADL5602ARKZ-R7 from Analog Devices Inc. is a high-performance, RF/IF gain block amplifier that operates over a broad frequency range with a single device. This versatile component is designed to offer consistent gain and linearity for various applications in telecommunications, satellite communications, and test equipment. The product is available in a compact, 6-lead SOT-89 package, making it suitable for space-constrained applications.

Key Features:

• Frequency Range: The ADL5602ARKZ-R7 operates from 50 MHz to 4000 MHz, providing a wide range of frequency coverage for diverse RF applications.
• Gain: It offers a high gain of 15.5 dB, ensuring signal amplification across its operating frequency without the need for external matching components.
• Output Power: The device provides an output third-order intercept point (OIP3) of 35 dBm, enabling it to deliver strong signal power while maintaining signal integrity.
• Low Noise Figure: With a low noise figure of 4.3 dB, the amplifier maintains signal clarity and reduces unwanted signal distortion.
• Single Supply Voltage: The ADL5602ARKZ-R7 operates on a single 5V supply, simplifying the power supply design and reducing system complexity.
• Robustness: The device is rated for a wide temperature range, ensuring reliable performance in various environmental conditions.

Applications:

• Cellular infrastructure: Base stations, repeaters, and wireless backhaul
• Satellite communications: Downlink and uplink chains
• Test and measurement equipment: Signal generators and analyzers
• General-purpose RF and IF amplification

The ADL5602ARKZ-R7 from Analog Devices Inc. is an ideal solution for designers looking for a reliable and efficient amplifier that can handle a wide range of RF signals. Its ease of integration, coupled with its robust performance, makes it a valuable addition to any RF signal chain.

Whether integrating into existing designs or creating new systems, the ADL5602ARKZ-R7 offers the quality and performance expected from a leading manufacturer like Analog Devices Inc. Its combination of features ensures that it can meet the demanding requirements of modern RF and microwave applications.
