ADIS16220/PCBZ - High Precision Triaxial Inertial Sensor

The ADIS16220/PCBZ from Analog Devices Inc. is a state-of-the-art triaxial inertial sensor that offers unparalleled accuracy and stability in a compact, easy-to-use package. Designed to meet the rigorous demands of industrial and instrumentation applications, this high-performance sensor module is ideal for platform stabilization, motion analysis, and vibration monitoring tasks.

Key Features

• Triaxial Acceleration Sensing: The ADIS16220/PCBZ features a triaxial accelerometer that can measure acceleration in three dimensions, providing comprehensive data for dynamic motion analysis.
• High Precision: With high-resolution 14-bit data, this sensor ensures precise measurement, capturing even the slightest movements with accuracy.
• Wide Measurement Range: It offers a broad dynamic range, making it suitable for a variety of applications, from low-frequency motion to high-frequency vibration.
• Programmable Configuration: Users can configure various parameters such as sample rate, averaging, and alarms, allowing for a tailored solution to specific application needs.
• Integrated Temperature Sensor: An on-board temperature sensor provides compensation for thermal variations, ensuring reliable operation over a wide temperature range.
• Digital I/O: The sensor includes digital I/O lines for event capture and triggering, enhancing its versatility in system integration.
• Power Management: Low power consumption modes are available to optimize energy use for battery-powered or energy-sensitive applications.

Easy Integration

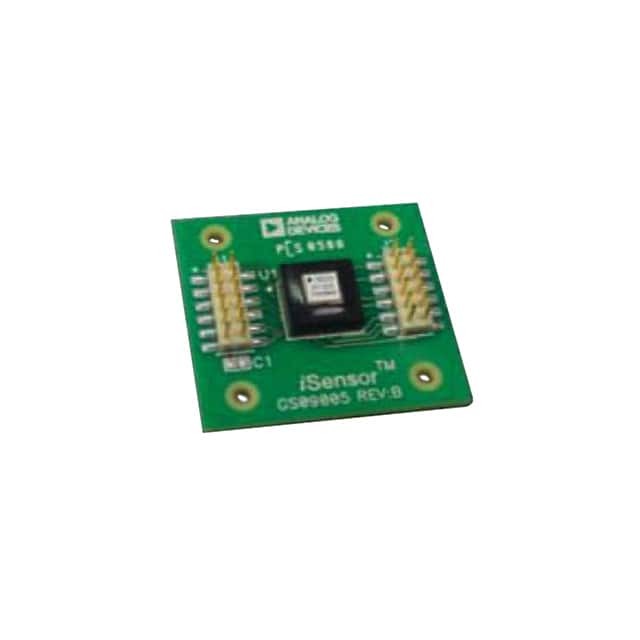

The ADIS16220/PCBZ comes mounted on a PCB for simple integration into a variety of systems. The board includes a flexible connector interface that simplifies electrical connections, while its compact form factor allows it to be easily embedded into space-constrained designs.

Applications

With its robust feature set, the ADIS16220/PCBZ is suited for a multitude of applications including:

• Industrial equipment monitoring
• Automotive system testing
• Robotics and unmanned vehicles
• Structural health monitoring
• Aerospace and defense systems

Whether it's for precision machinery alignment, health monitoring of critical structures, or dynamic motion feedback for autonomous systems, the ADIS16220/PCBZ by Analog Devices Inc. delivers the performance and reliability required for advanced sensing solutions.
