Product Overview: ADG811YCPZ-REEL7 from Analog Devices Inc.

The ADG811YCPZ-REEL7 is a cutting-edge CMOS analog switch from Analog Devices Inc., known for its high performance and reliability in various applications. This switch is designed to deliver exceptional signal integrity with minimal on-resistance and fast switching speeds, making it an excellent choice for precision analog signal routing.

Key Features:

• Low On-Resistance: The ADG811YCPZ-REEL7 boasts a low on-resistance, typically around 0.5 ohms, which ensures minimal signal attenuation and distortion, providing a high degree of accuracy in signal routing.
• Single Supply Operation: Operating efficiently on a single supply voltage ranging from +1.8V to +5.5V, this analog switch is versatile and can be used in various systems without the need for additional power supplies.
• Fast Switching: With fast switching times (t_ON and t_OFF), the ADG811YCPZ-REEL7 can handle high-frequency signals, making it suitable for multiplexing and demultiplexing applications.
• Low Power Consumption: The device features a low power consumption, which is critical for battery-powered and portable devices, ensuring longer operation times without compromising performance.
• Wide Temperature Range: It operates over an extended temperature range, which allows it to be used in industrial and automotive environments that require robust performance under varying conditions.

Applications:

• Audio and video signal routing
• Data acquisition systems
• Communication systems
• Test equipment and instrumentation
• Relay replacement

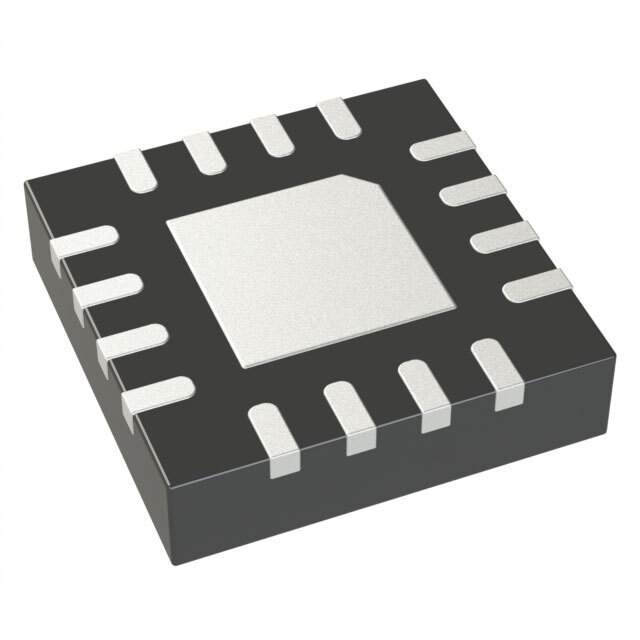

The ADG811YCPZ-REEL7 comes in a compact LFCSP (Lead Frame Chip Scale Package) and is part of a tape and reel packaging, indicated by the "REEL7" suffix, which facilitates efficient assembly processes in high-volume production environments.

Analog Devices Inc. has a reputation for producing high-quality components that meet the demands of modern electronic designs, and the ADG811YCPZ-REEL7 is no exception. With its combination of low on-resistance, fast switching, and single-supply operation, it stands out as a top choice for designers looking to optimize their analog signal routing with minimal signal degradation and power usage.
