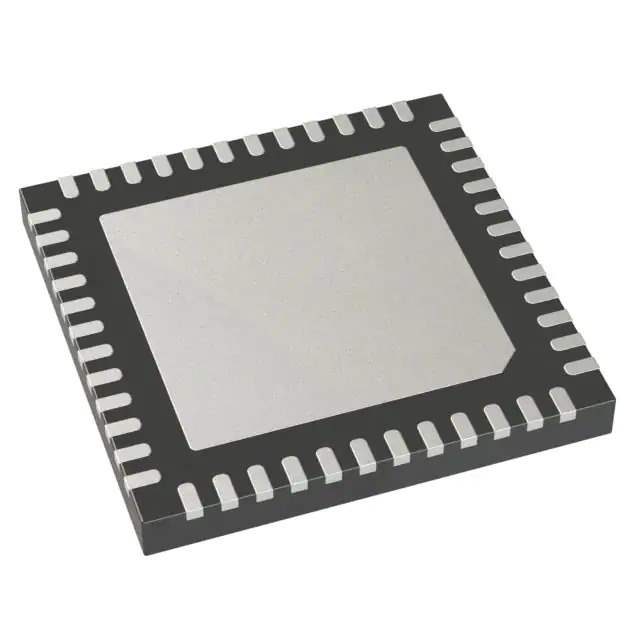

Analog Devices Inc. ADG726BCPZ Multiplexer

The ADG726BCPZ is a high-performance, dual 16-channel multiplexer from Analog Devices Inc., designed to deliver precision signal routing in complex systems. This device is part of the iCMOS® modular manufacturing process which combines high voltage silicon with submicron CMOS and complementary bipolar technologies. It offers a robust feature set that makes it an ideal choice for data acquisition systems, communication systems, and industrial automation applications.

Constructed with 16 single-pole, double-throw (SPDT) switches, this multiplexer enables the connection of one of 16 inputs to a common output as determined by the 4-bit binary address lines. Its dual configuration allows for two separate 16-channel multiplexers in one package, providing a compact and efficient solution for systems requiring multiple signal routing options.

The ADG726BCPZ operates with a single supply voltage ranging from +3 V to +5 V or dual supplies of ±5 V to ±16.5 V, giving it the flexibility to be integrated into a wide range of system designs. Its low on resistance (Ron) and on-resistance flatness ensure minimal signal distortion, while the low power consumption helps in maintaining energy efficiency in your system.

This device boasts a wide -3 dB bandwidth of greater than 200 MHz, which allows high-frequency signals to pass through with minimal attenuation, making it suitable for video signal switching and other high-speed applications. The ADG726BCPZ also features a low crosstalk and high off-isolation, ensuring that signals are cleanly and accurately routed without interference from adjacent channels.

For ease of use, the ADG726BCPZ is available in a compact 48-lead LFCSP (Lead Frame Chip Scale Package) which is designed to minimize space on the PCB. The device is characterized for operation from -40°C to +85°C, allowing it to perform reliably in a wide range of environmental conditions. With its robust design and versatile features, the ADG726BCPZ from Analog Devices Inc. is an exceptional choice for designers looking to implement precise and reliable multiplexing solutions in their electronic systems.

Key Features:

• Dual 16-channel multiplexing
• Low on resistance and on-resistance flatness
• Single or dual supply operation
• High bandwidth (>200 MHz)
• Low crosstalk and high off-isolation
• Compact 48-lead LFCSP package
• Wide operating temperature range (-40°C to +85°C)
