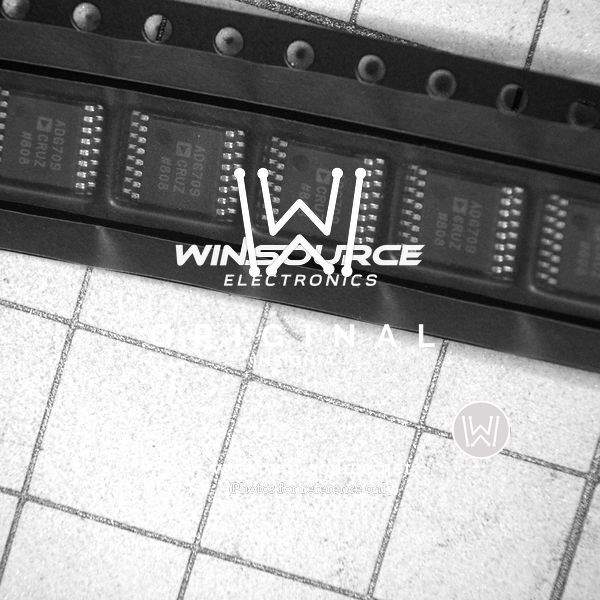

ADG709CRUZ-REEL

Part No ADG709CRUZ-REEL
Manufacturer Analog Devices Inc.
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description Low Voltage 4-/8-Channel Multiplexers | IC MULTIPLEXER DUAL 4X1 16TSSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Analog Devices Inc.
Packaging Tape and Reel
Status Obsolete
Switch Circuit SP4T
On-State Resistance (Maximum) 4.5Ohm
Channel-to-Channel Matching (ΔRon) 400mOhm
Supply Voltage , Single (V+) 1.8V ~ 5.5V
Supply Voltage , Dual (V±) ±2.5V
Switch Time (Ton, Toff) (Maximum) 14ns, 8ns
-3db Bandwidth 55MHz
Charge Injection 3pC
Channel Capacitance (CS(off), CD(off)) 13pF, 42pF
Current - Leakage (IS(off)) (Maximum) 10pA
Crosstalk -80dB at 1MHz
Temperature Range - Operating -40°C ~ 125°C
Manufacturer Package 16-TSSOP
Supplier Device Package 16-TSSOP
Family Part Number ADG709
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Win Source Part Number 1140401-ADG709CRUZ-REEL
Manufacturer Homepage www.analog.com
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Signal Processing, Communications & Networking, Power Management, Imaging, Video & Vision, Audio
Ultra Librarian 3D Model Ultra Librarian ADG709CRUZ-REEL CAD Model

Description

Product Overview: ADG709CRUZ-REEL

The ADG709CRUZ-REEL is a high-performance, CMOS analog multiplexer from Analog Devices Inc., a leader in the semiconductor industry. This precision device is designed to operate with a single +1.8 V to +5.5 V supply, making it particularly suitable for battery-powered, portable instruments, as well as data acquisition systems, communication systems, and medical equipment where low power consumption is essential.

Key Features

  • Low Voltage Operation: Designed for a supply range of +1.8 V to +5.5 V, the ADG709CRUZ-REEL is ideal for applications where power efficiency is critical.
  • Low On Resistance: The device features a low on resistance (Ron) of typically 4 ohms, ensuring minimal signal distortion and power loss.
  • High Bandwidth: With a bandwidth of 200 MHz, this multiplexer is capable of handling high-speed signals without significant attenuation, making it suitable for video and high-frequency applications.
  • Dual Channel Configuration: It offers a dual 1-of-4 channel configuration, providing flexibility in routing analog signals in complex systems.
  • Low Power Consumption: The ADG709CRUZ-REEL is optimized for low power consumption, drawing less than 0.01 µA in standby mode.
  • TTL/CMOS Compatible: The digital inputs are TTL/CMOS compatible, allowing for easy integration with digital processors and logic circuits.

Package and Quality

The device comes in a compact TSSOP-16 (Thin Shrink Small Outline Package) form factor, making it suitable for space-constrained applications. The ADG709CRUZ-REEL is part of the REEL packaging option, which typically indicates tape and reel packaging used for automated manufacturing processes.

Applications

With its versatile features, the ADG709CRUZ-REEL can be deployed in a wide range of applications, including:

  • Data acquisition systems
  • Communication systems
  • Audio and video switching
  • Relay replacement
  • Medical diagnostics
  • Battery-powered systems

For engineers and designers looking for a reliable and efficient analog multiplexer, the ADG709CRUZ-REEL from Analog Devices Inc. offers an excellent blend of performance, power efficiency, and versatility.
