Analog Devices Inc. ADG451BRZ-REEL7

The ADG451BRZ-REEL7 is a high-performance, monolithic CMOS switch fabricated by Analog Devices Inc., a leader in the field of high-precision, high-performance integrated circuits. This switch is designed to deliver exceptional signal integrity and reliability for a wide range of applications, including data acquisition systems, communication systems, and medical equipment.

The ADG451BRZ-REEL7 is a single-pole, single-throw (SPST) switch, which provides a single channel of high-speed switching with a low on-resistance. Its CMOS construction ensures low power dissipation, making it an ideal choice for battery-powered and portable devices. The switch operates from a single 5 V to 15 V power supply, providing designers with flexibility in various circuit designs.

This device boasts a robust design with latch-up immunity and electrostatic discharge (ESD) protection. It is capable of handling ±12 V analog signals while maintaining a high degree of accuracy and linearity. The switch's on-resistance profile is very flat over the full analog input range, ensuring consistent performance and minimal signal distortion.

One of the key features of the ADG451BRZ-REEL7 is its low charge injection, which minimizes the impact on the signal during switching events. This is crucial for precision applications where signal integrity is paramount. Additionally, the switch exhibits low power dissipation and has a wide operating temperature range, making it suitable for industrial environments.

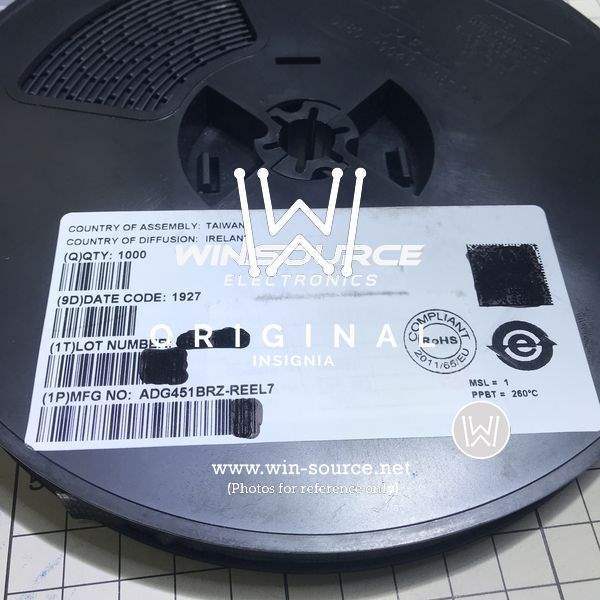

The device comes in a compact surface-mount package and is provided in a tape and reel format (REEL7), which facilitates automated manufacturing processes. The packaging is designed to be robust and to provide reliable operation over the product's lifespan.

In summary, the ADG451BRZ-REEL7 from Analog Devices Inc. is a high-quality, versatile switch that offers excellent performance for a variety of applications. Its low on-resistance, low charge injection, and ESD protection make it an excellent choice for designers looking for a reliable switching solution.
