Analog Devices Inc. ADG412BRU Precision Analog Switch

The ADG412BRU from Analog Devices Inc. is a high-performance, precision monolithic analog switch designed for use in a wide array of applications, including data acquisition systems, communication systems, and medical equipment. This device is characterized by its low power consumption and high switching speeds, making it an ideal choice for battery-powered and portable devices.

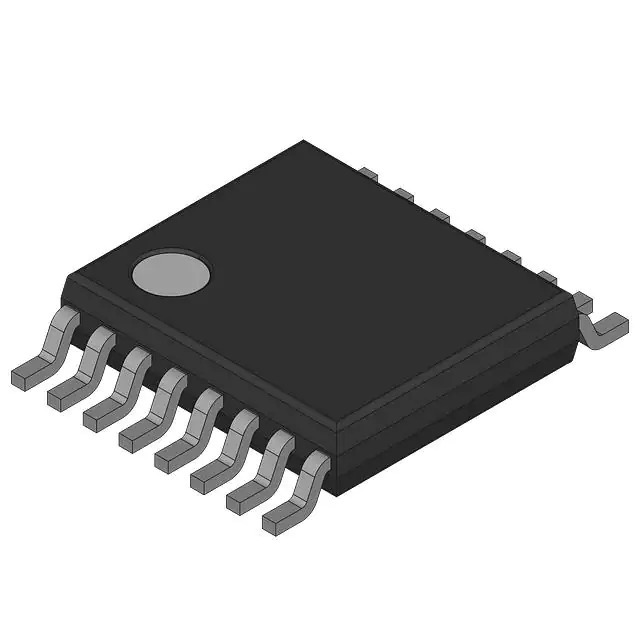

This switch is part of the ADG412 series and comes in a TSSOP (Thin Shrink Small Outline Package) form factor, which is suitable for surface-mount technology (SMT) and is known for its space-saving design. The ADG412BRU is designed to operate with a single dual supply voltage ranging from ±4.5 V to ±18 V, or a single supply voltage from 9 V to 36 V, offering flexibility in various power environments.

The ADG412BRU features four independently selectable single-pole, double-throw (SPDT) switches, which provide a high degree of design versatility. The on-resistance profile is very flat over the full analog input range, ensuring excellent linearity and low distortion. This is particularly important in precision analog applications where signal integrity is paramount.

Key specifications of the ADG412BRU include low on-resistance (typically 35 ohms), low on-resistance match between channels (typically 0.5 ohms), and low total harmonic distortion (THD). Additionally, the device offers fast transition times, with a t_ON of 175 ns and a t_OFF of 145 ns, contributing to its high-speed performance.

The ADG412BRU also incorporates a variety of protection features. It has an extended signal range that exceeds the supply rails, latch-up immunity, and ESD (Electrostatic Discharge) protection inputs. This robustness makes the ADG412BRU a reliable choice for demanding applications where signal fidelity and switch protection are critical.

Overall, the ADG412BRU is a testament to Analog Devices Inc.'s commitment to providing high-quality, reliable components for precision analog switching. Its combination of performance, versatility, and robustness makes it a go-to option for designers looking to optimize their systems for both efficiency and precision.
