ADG1401BRMZ High-Performance Analog Switch from Analog Devices Inc.

The ADG1401BRMZ is a monolithic CMOS device comprising a single-pole/single-throw (SPST) switch from Analog Devices Inc., a leader in high-performance semiconductors. Designed for precision and high-speed applications, this switch offers a compelling mix of low on-resistance and low off-leakage currents, making it an excellent choice for a variety of data acquisition and signal routing needs.

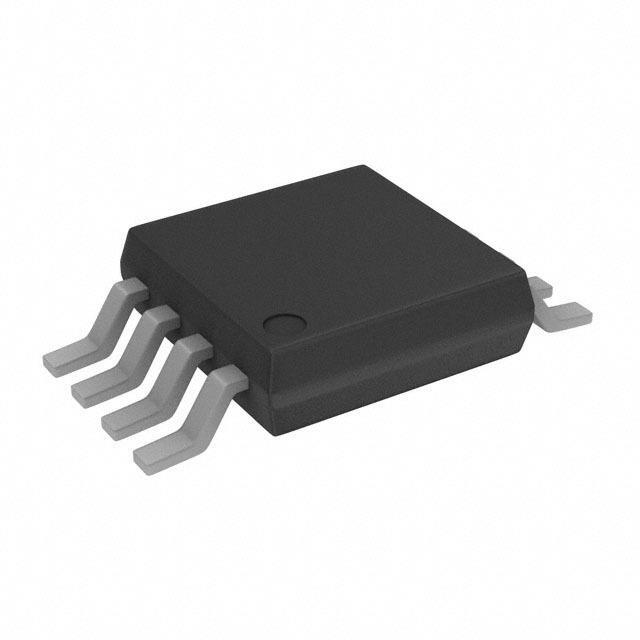

This particular model comes in a compact MSOP (Mini Small Outline Package) with the designation 'BRMZ', which allows for efficient space utilization on printed circuit boards. The switch operates over a wide supply voltage range from ±4.5 V to ±16.5 V or a single +9 V to +33 V, providing versatility for different circuit configurations and ensuring compatibility with both dual and single supply operations.

One of the key features of the ADG1401BRMZ is its low on-resistance, typically around 1.5 Ω, which is nearly constant over the full signal range. This low on-resistance is matched with a flatness of less than 0.4 Ω, ensuring minimal signal distortion and making the device ideal for precision applications. Additionally, the off-leakage current is minimal, contributing to the high integrity of the signal being switched.

The device also boasts fast switching times, with turn-on and turn-off times typically in the nanoseconds range, which is critical for high-speed data acquisition systems. Moreover, the ADG1401BRMZ features a high current carrying capability, further extending its suitability for a wide array of applications.

For protection purposes, the ADG1401BRMZ is equipped with robust ESD (Electrostatic Discharge) protection circuits, which safeguard the device against inadvertent voltage spikes. Furthermore, it has an extended temperature range, making it reliable in various environmental conditions.

In summary, the ADG1401BRMZ from Analog Devices Inc. is a high-performance, reliable, and versatile analog switch that offers excellent electrical characteristics for precision analog switching. Its compact size, combined with its robust design, makes it a preferred choice for engineers and designers in the fields of instrumentation, data acquisition, and communication systems.
