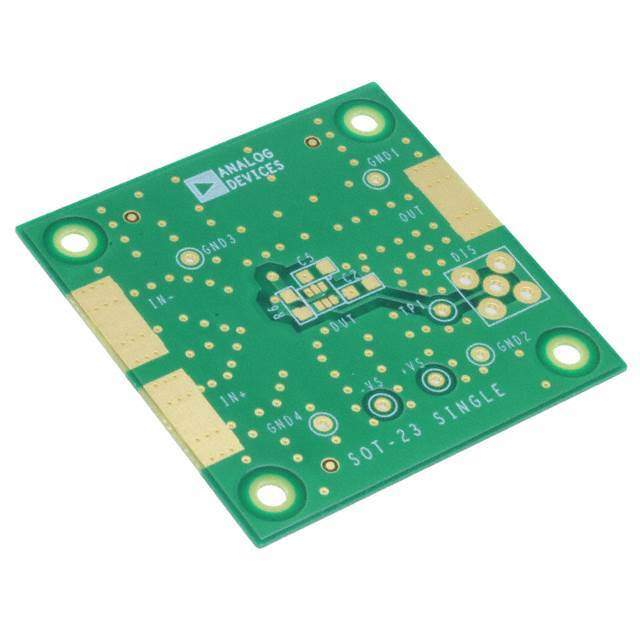

Analog Devices Inc. ADA4805-1ARJZ-EBZ Low Power, Rail-to-Rail Output Amplifier

The ADA4805-1ARJZ-EBZ by Analog Devices Inc. is a high-performance, single-supply voltage feedback amplifier that offers a perfect blend of low power consumption and high speed. Designed for applications that demand energy efficiency without compromising on speed, this amplifier is ideal for battery-powered devices, portable instruments, and applications within the industrial, medical, and consumer electronics sectors.

With a wide bandwidth of 105 MHz and a fast slew rate of 170 V/μs, the ADA4805-1ARJZ-EBZ ensures excellent dynamic response, making it suitable for high-speed signal conditioning, ADC/DAC buffering, and video processing. Its rail-to-rail output swing provides maximum dynamic range, which is particularly beneficial when operating at low supply voltages.

The ADA4805-1ARJZ-EBZ operates at a supply voltage range from 2.7 V to 5.5 V, allowing for flexible design options in various power environments. Additionally, the device boasts a low quiescent current of just 1.1 mA, contributing to the extended battery life of portable applications. Despite its low power consumption, the amplifier does not sacrifice performance, offering a low input bias current of 1.5 pA and low offset voltage of 800 μV, ensuring high precision in signal amplification tasks.

This amplifier comes in a compact SOT-23 package, which is highly advantageous for space-constrained applications. The ADA4805-1ARJZ-EBZ also features over-temperature and over-current protection, enhancing the reliability and robustness of the system it is integrated into.

Analog Devices provides comprehensive technical support for the ADA4805-1ARJZ-EBZ, including detailed datasheets, reference designs, and simulation models, which can significantly reduce development time and enable a smoother design-in process.

In summary, the ADA4805-1ARJZ-EBZ from Analog Devices Inc. is an excellent choice for designers looking for a low-power, high-speed amplifier with rail-to-rail output capabilities. Its performance, combined with power efficiency and compact form factor, makes it an attractive option for a wide array of applications.
