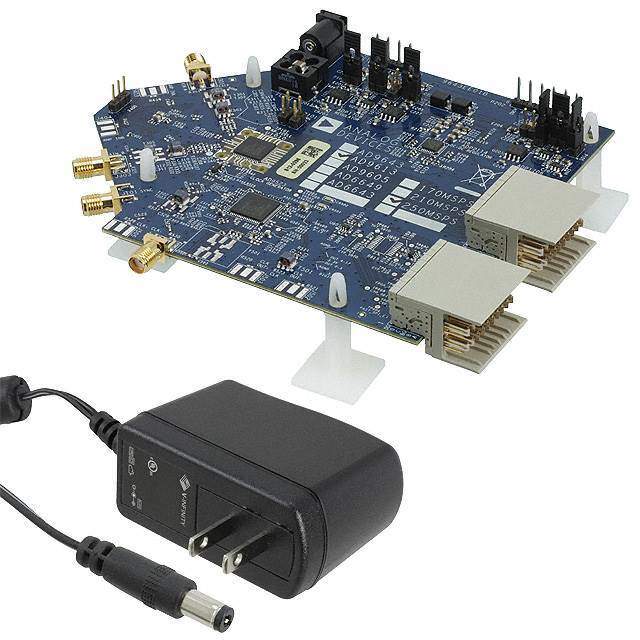

AD9613-250EBZ Dual ADC Evaluation Board by Analog Devices Inc.

The AD9613-250EBZ is a high-performance evaluation board designed by Analog Devices Inc. to showcase the capabilities of the AD9613 dual analog-to-digital converter (ADC). This board provides an efficient and user-friendly platform for testing and assessing the features of the AD9613, which is renowned for its precision and speed in signal conversion applications.

Key Features of the AD9613-250EBZ:

• High-Speed Dual ADC: The AD9613 is a dual, 12-bit ADC that operates at a maximum sampling rate of 250 MSPS, providing rapid and accurate data conversion for a wide range of applications.
• On-Board Clocking: The evaluation board includes an on-board clock circuitry to generate the necessary clock signals for the ADC, simplifying the evaluation process and reducing the need for external components.
• Flexible Input Options: The AD9613-250EBZ supports various input configurations, including single-ended and differential inputs, to accommodate different signal sources and testing scenarios.
• Easy-to-Use Interface: The board connects to a PC via a high-speed USB interface, allowing for straightforward data capture and analysis with the provided software.
• Comprehensive Software Support: Analog Devices Inc. offers a full suite of software tools that enable users to control the ADC, capture data, and perform detailed analysis of the ADC's performance.

Applications:

The AD9613-250EBZ is ideal for a variety of high-speed data acquisition systems, including:

• Radar and satellite communication systems
• Medical imaging equipment
• Digital storage oscilloscopes
• Wireless infrastructure

Overall, the AD9613-250EBZ evaluation board is a vital tool for engineers and designers who require a reliable and high-speed ADC solution. With its robust feature set and comprehensive support, the AD9613-250EBZ allows for a thorough assessment of the AD9613 ADC, ensuring that it meets the specific needs of advanced digital signal processing applications.
