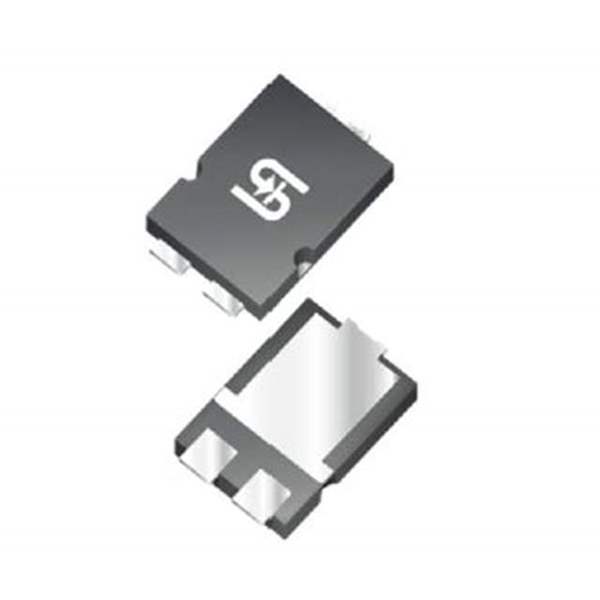

TSPB20U80S S1G

Name: TSPB20U80S S1G
Brand: Taiwan Semiconductor
SKU: 802281
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSPB20U80S S1G
Manufacturer	Taiwan Semiconductor
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 80V 20A SMPC4.0
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Taiwan Semiconductor Corporation
Packaging	Reel
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Maximum)	80V
Current - Average Rectified (Io)	20A
Voltage - Forward (Vf) (Maximum) at If	640mV at 20A
Speed	Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr	300μA at 80V
Mounting Style	SMD
Manufacturer Package	TO-277, 3-PowerDFN
Supplier Device Package	SMPC4.0
Operating Temperature - Junction	-55°C ~ 150°C
Manufacturer Pack Quantity	1,500
MSL Level	1 (Unlimited)
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	802281-TSPB20U80S S1G
Ultra Librarian 3D Model	Ultra Librarian TSPB20U80S S1G CAD Model

Alternative Products

Description

The Taiwan Semiconductor Corporation TSPB20U80S S1G is a Schottky diode with a fast recovery of 200mA (Io).

Package: SMPC4.0
Mounting Style: SMD
Voltage DC Reverse (Vr): 80V
Manufacturer Package: TO-277, 3-PowerDFN
Current Average Rectified (Io): 20A
Voltage Forward (Vf): 640mV @ 20A
Current Reverse Leakage @ Vr: 300μA @ 80V
Manufacturer Pack Quantity: 1,500
MSL Level: 1 (unlimited)
