Product Overview: AD9460BSVZ-80 by Analog Devices Inc.

The AD9460BSVZ-80 is a high-performance, 16-bit analog-to-digital converter (ADC) designed by Analog Devices Inc., a leader in high-performance semiconductors for signal processing applications. This particular model is engineered to deliver exceptional accuracy and speed, making it an ideal choice for demanding applications that require precise digital representation of analog signals.

Key Features:

• Resolution: 16-bit ADC offering fine granularity for a wide range of applications.
• Sampling Rate: Features a high-speed sampling rate of up to 80 MSPS (Mega Samples Per Second), which ensures the capture of fast transient signals with high fidelity.
• Input Bandwidth: The device boasts an analog input bandwidth that supports a wide range of frequencies, accommodating various signal types.
• Differential Inputs: Includes differential inputs that reduce common-mode noise, enhancing the signal integrity and dynamic performance.
• Output Format: Provides flexible output options with LVDS (Low Voltage Differential Signaling) interfaces, facilitating lower power consumption and reduced noise emissions.
• Power Consumption: Optimized for low power operation, which is critical for thermal management and energy efficiency in embedded systems.

Applications:

The AD9460BSVZ-80 is versatile and can be used in a variety of high-speed signal processing tasks. Its robust performance makes it suitable for:

• Medical imaging systems
• Communications infrastructure
• Radar and satellite systems
• Test and measurement equipment
• Data acquisition systems

Quality and Reliability:

Analog Devices Inc. is known for its commitment to quality, and the AD9460BSVZ-80 is no exception. The product is manufactured with the highest standards, ensuring reliability and longevity in the field. It is also supported by comprehensive technical documentation and customer support, making integration and troubleshooting more straightforward for engineers and designers.

Package Information:

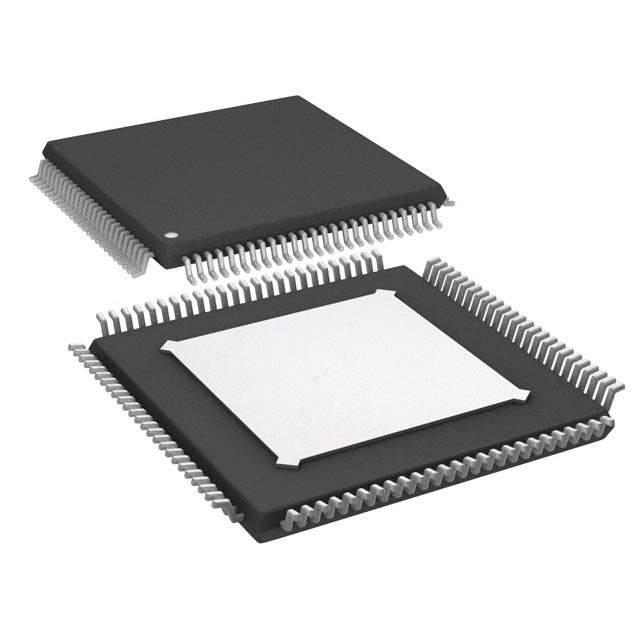

The AD9460BSVZ-80 comes in a compact 100-lead TQFP (Thin Quad Flat Package) that is suitable for space-constrained applications while providing adequate thermal performance for cooling.

For those looking to integrate a high-speed, high-accuracy ADC into their system, the AD9460BSVZ-80 from Analog Devices Inc. offers a compelling blend of performance and reliability.
