Product Overview: AD9446BSVZ-80 by Analog Devices Inc.

The AD9446BSVZ-80 is a high-performance, 16-bit analog-to-digital converter (ADC) designed by Analog Devices Inc., a leader in precision high-performance signal processing technology. This ADC is part of a series that offers a sampling rate of 80 MSPS (mega samples per second), making it an excellent choice for applications requiring high data acquisition rates with superior accuracy.

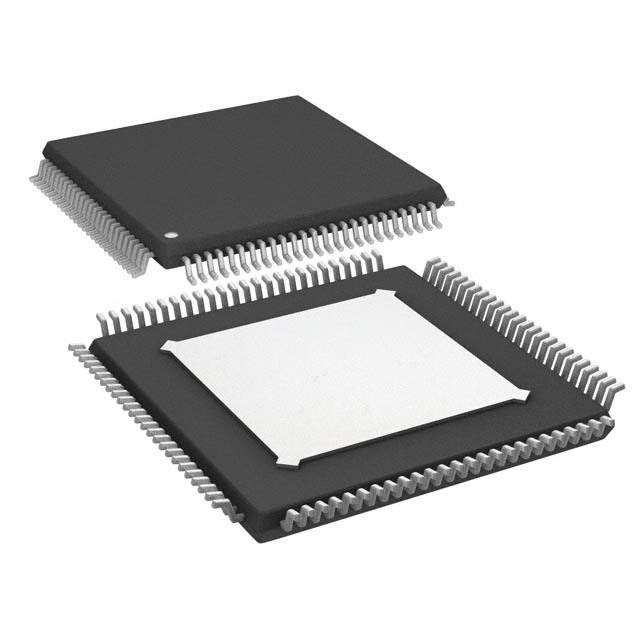

Encased in a compact 100-TQFP (Thin Quad Flat Package), the AD9446BSVZ-80 is engineered to deliver exceptional dynamic performance with a SNR (Signal-to-Noise Ratio) of 76 dBFS (decibels relative to full scale) and an SFDR (Spurious-Free Dynamic Range) of 90 dBc, ensuring clean and reliable signal conversion for critical applications.

This ADC features a differential input with a wide input bandwidth that supports IF (Intermediate Frequency) sampling, making it well-suited for communications systems, including software-defined radios, radar systems, and other signal processing applications that demand high-speed and precise analog-to-digital conversion.

Key Specifications:

• Resolution: 16-bit
• Max Sampling Rate: 80 MSPS
• Input Bandwidth: 200 MHz
• Analog Input Type: Differential
• SNR: 76 dBFS
• SFDR: 90 dBc
• Package: 100-TQFP
• Operating Temperature Range: -40°C to +85°C

The AD9446BSVZ-80 also includes features such as an integrated voltage reference and a flexible digital interface that supports both 3.3V and 2.5V logic levels, offering ease of integration with a wide range of digital signal processors (DSPs) and FPGAs. The device also provides an overrange indicator and a programmable digital test pattern generator, which are valuable tools for system testing and validation.

With its robust design and high-speed performance, the AD9446BSVZ-80 from Analog Devices Inc. is a versatile ADC that meets the stringent requirements of professional-grade electronic equipment. Whether it's for instrumentation, medical imaging systems, or high-speed data acquisition, this ADC stands out as a reliable and efficient solution for converting analog signals into digital data with precision and speed.
