The AD9142BCPZRL from Analog Devices Inc. is a high-performance, dual-channel, 16-bit digital-to-analog converter (DAC) designed to deliver a combination of high dynamic range and high sampling rates, making it an ideal solution for demanding signal synthesis applications. With a maximum sampling rate of 1600 MSPS (mega samples per second), this DAC is particularly well-suited for advanced communications systems, high-speed signal generation, and complex waveform generation.

Key Features

• High Resolution: The 16-bit resolution of the AD9142BCPZRL ensures fine granularity in signal generation, providing high fidelity and low noise performance.
• Dual DAC Channels: Two independent DAC channels allow for the simultaneous output of complex waveforms, ideal for I/Q modulation schemes used in modern communication systems.
• High Speed: With a sampling rate of up to 1600 MSPS, this device supports high data rate systems and allows for the generation of wide bandwidth signals.
• Integrated 32-bit NCO: An on-chip numerically controlled oscillator (NCO) enables flexible frequency synthesis, reducing the need for external components.
• Differential Outputs: The differential current outputs are designed to interface seamlessly with typical RF components such as modulators and transceivers.
• Programmable: Users can program the full-scale output current from 8.7 mA to 31.7 mA, providing versatility in output signal amplitude.
• Energy Efficient: The AD9142BCPZRL features a power-down mode that significantly reduces power consumption when the DAC is not in use.

Applications

The AD9142BCPZRL is optimal for a range of applications including but not limited to:

• Wireless infrastructure (GSM, WCDMA, LTE)
• Instrumentation and automated test equipment (ATE)
• High-speed data acquisition systems
• Direct digital synthesis (DDS)
• Complex waveform generation

Package and Availability

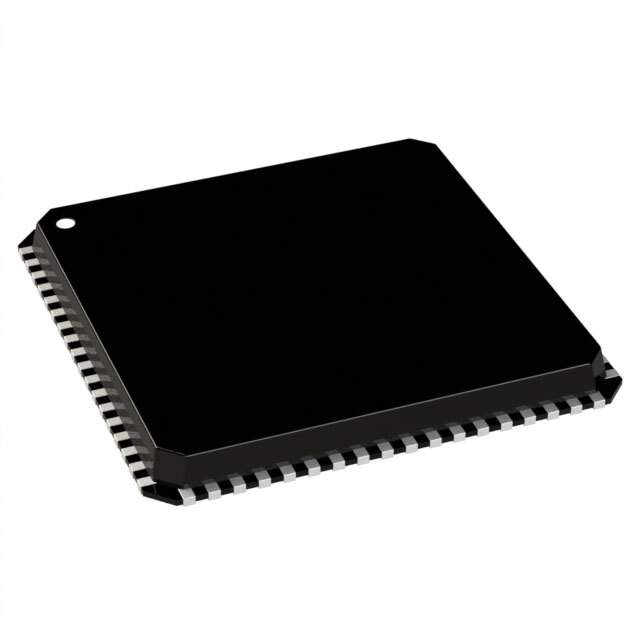

The AD9142BCPZRL comes in a compact LFCSP (lead-frame chip-scale package) that is RoHS compliant and specified over the industrial temperature range of -40°C to +85°C. This product is available in a tape and reel format, denoted by the 'RL' suffix, facilitating efficient handling and manufacturing logistics for high-volume production environments.
