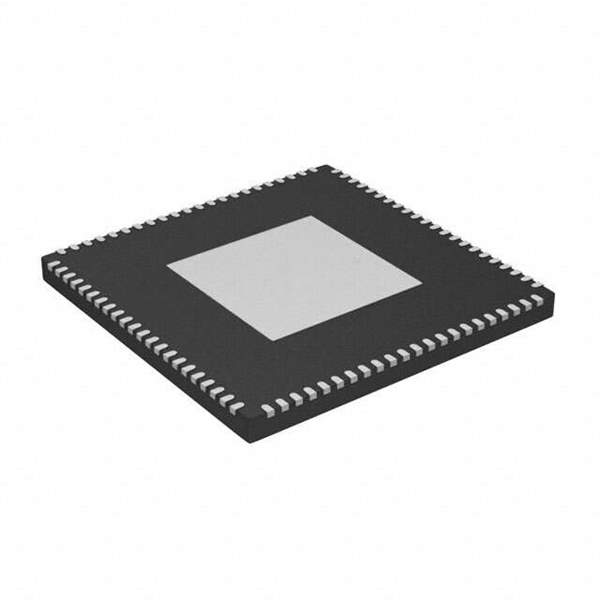

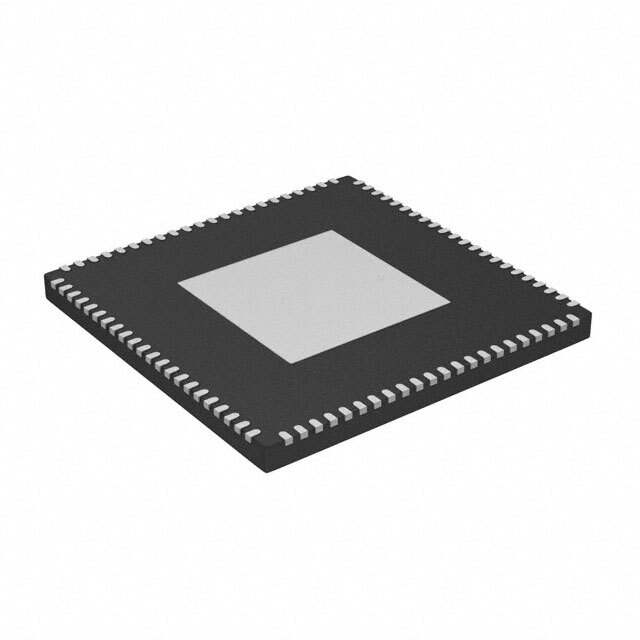

Product Overview: AD9136BCPZ from Analog Devices Inc.

The AD9136BCPZ is a high-performance digital-to-analog converter (DAC) designed by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This particular model is a dual, 16-bit, high-speed DAC that is engineered to provide solutions for demanding applications that require high data rates and bandwidth.

Key Features:

• High Resolution: The AD9136BCPZ boasts a 16-bit resolution, which ensures fine granularity and precise digital-to-analog conversion, making it suitable for applications that require a high level of detail and accuracy.
• Dual DAC Channels: With dual DAC channels, this device can manage complex tasks and signals efficiently, providing flexibility in multi-channel applications such as MIMO (Multiple Input Multiple Output) systems.
• High Data Rates: The DAC supports data rates up to 2.8 GSPS (Giga Samples Per Second), which allows for high-speed data processing and is particularly beneficial in fast communication systems.
• Integrated 32-bit NCO: The inclusion of an integrated 32-bit numerically controlled oscillator (NCO) enables flexible frequency synthesis, which is critical for applications like wireless infrastructure and instrumentation.
• Mix-Mode Signal Support: The AD9136BCPZ is capable of supporting both single-ended and differential signal types, offering versatility in signal interfacing.

Applications:

• Wireless infrastructure (e.g., base stations for 4G, 5G)
• Instrumentation and measurement equipment
• High-speed data acquisition systems
• Automated test equipment (ATE)
• Defense and aerospace electronics

Technical Specifications:

Parameter Value Resolution 16-bit Number of Channels 2 Max Data Rate 2.8 GSPS Integrated NCO 32-bit Interface Type JESD204B Package LFCSP-72

The AD9136BCPZ is available in a 72-lead LFCSP (Lead Frame Chip Scale Package) and is designed to operate over the industrial temperature range. With its robust feature set, the AD9136BCPZ is an exemplary choice for designers looking to implement a high-performance DAC solution in their systems.
