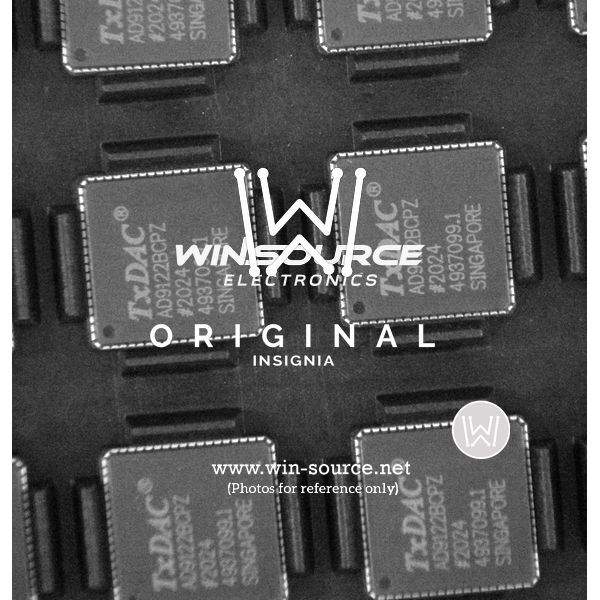

The AD9122BCPZ is a high-performance, dual-channel digital-to-analog converter (DAC) from Analog Devices Inc., designed to meet the demanding requirements of communications applications. With its 16-bit resolution and impressive 1200 MSPS (Mega Samples Per Second) update rate, this TxDAC+® series component is an ideal choice for advanced wired and wireless communication systems.

Key Features

• High Resolution: 16-bit DACs ensure precise digital-to-analog conversion for both channels, providing excellent signal fidelity.
• High-Speed Interface: With a maximum update rate of 1200 MSPS, the AD9122BCPZ is capable of supporting high data rate communications and complex modulation schemes.
• Dual DAC Channels: The dual-channel architecture enables the simultaneous output of two independent analog signals, which is critical for I/Q modulation schemes used in modern transceivers.
• Integrated Features: The device includes features such as an 8× interpolator, which reduces the data rate required on the input side, and a complex digital modulation capability, allowing for the implementation of sophisticated signal processing algorithms.
• Flexible Interface: A versatile SPI (Serial Peripheral Interface) allows for easy integration with a variety of microprocessors and digital systems.
• Compact Package: Housed in a compact 72-lead LFCSP (Lead Frame Chip Scale Package), the AD9122BCPZ is optimized for space-constrained applications.

Applications

The AD9122BCPZ is particularly well-suited for:

• Wireless infrastructure (GSM, WCDMA, LTE)
• Instrumentation and measurement systems
• High-definition video broadcast systems
• Communications test equipment
• Complex waveform generation

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality and reliability. The AD9122BCPZ benefits from this reputation, ensuring stable and reliable performance across a wide range of operating conditions and applications.
