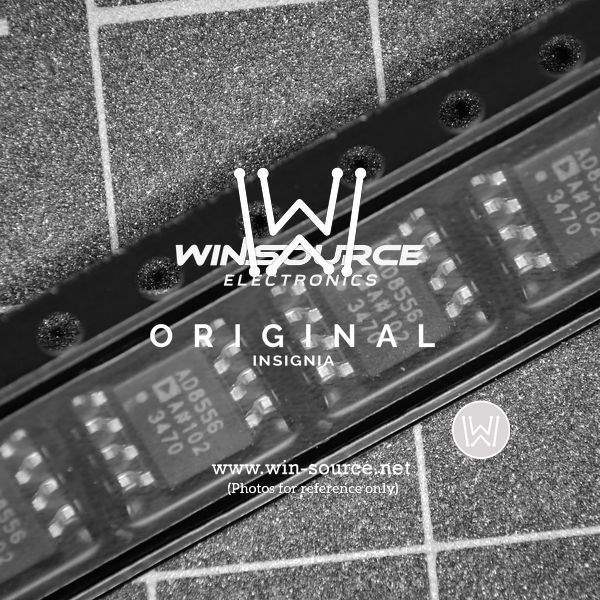

Product Overview: AD8556ARZ-REEL

The AD8556ARZ-REEL is a precision, digitally programmable sensor signal amplifier from Analog Devices Inc. This component is designed to maximize the performance of a wide range of sensors by providing a programmable gain and offset to the sensor output, ensuring optimal linearity and accuracy for measurement systems.

Key Features

• Programmable Gain and Offset: The AD8556ARZ-REEL offers users the ability to digitally program the gain and offset, allowing for fine-tuning of sensor signals for precise data acquisition.
• Zero-Drift Architecture: This device employs a patented zero-drift architecture, which minimizes the effects of temperature changes and initial offset errors, ensuring high stability over time and across temperature ranges.
• Wide Supply Voltage Range: The amplifier operates across a wide supply voltage range, making it versatile for various applications and compatible with multiple sensor types.
• Excellent Linearity: The AD8556ARZ-REEL provides exceptional linearity, which is critical for high-accuracy sensor readings and reliable performance in precision measurement applications.
• Compact Packaging: Available in a compact reel format, the AD8556ARZ-REEL is suitable for automated assembly processes, facilitating efficient manufacturing and integration into end products.

Applications

The AD8556ARZ-REEL is ideal for use in a range of applications where accurate sensor signal conditioning is required. These include:

• Industrial process controls
• Automotive sensor interfaces
• Medical equipment
• Strain gauge amplifiers
• Pressure and temperature sensor interfaces

Technical Specifications

The AD8556ARZ-REEL boasts a number of technical specifications that make it a robust choice for sensor signal amplification:

• Supply Voltage: 2.7V to 5.5V
• Operating Temperature Range: -40°C to +125°C
• Package: Supplied in a surface-mount package, ready for reel packaging for automated assembly.

With its combination of programmability, stability, and precision, the AD8556ARZ-REEL from Analog Devices Inc. is an excellent choice for engineers looking to enhance the performance of their sensor systems.
