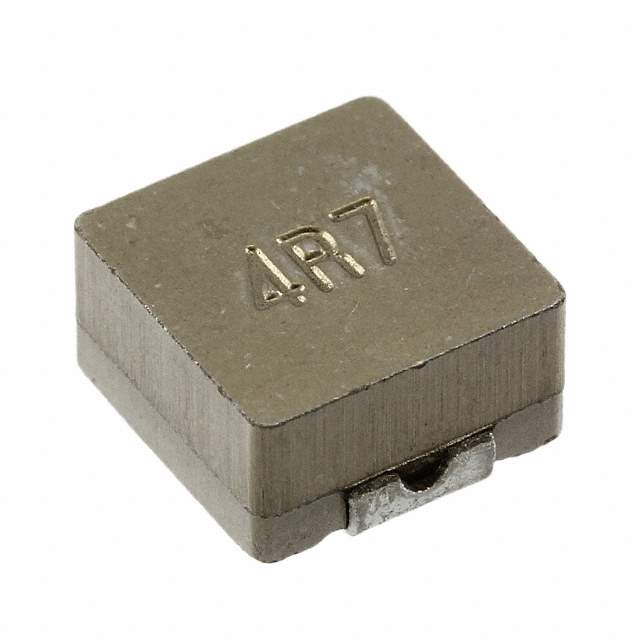

SRP6540-R68M Real Image
Same model may have multiple batches, images only for reference.

SRP6540-R68M

Part No SRP6540-R68M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP6540-R68M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP6540
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 680 nH
Tolerance ±20%
Current Rating (Amps) 16.5 A
Current - Saturation (Isat) 17A
Shielding Shielded
DC Resistance (DCR) 5mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.283" L x 0.256" W (7.20mm x 6.50mm)
Height - Seated (Max) 0.157" (4.00mm)
Base Product Number SRP6540
Other Names SRP6540-R68MDKR,SRP6540-R68MCT,SRP6540-R68MTR
Standard Package 1,200
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273816-SRP6540-R68M
Ultra Librarian 3D Model Ultra Librarian SRP6540-R68M CAD Model

Description

The Bourns SRP6540 series fixed inductors are designed for use in a variety of applications.

  • Type: Wirewound drum core
  • Inductance: 680nH
  • Tolerance: ±20%
  • Shielded: Yes
  • Packaging: Tape and reel
  • DC Resistance: 5mOhm (Maximum)
  • Current Rating: 16.5A
  • Operating Temperature: -55°C to 125°C
