Product Overview: AD8370AREZ-RL7

The AD8370AREZ-RL7 is a high-performance, digitally controlled variable gain amplifier (VGA) from Analog Devices Inc., designed to offer precise gain control and excellent dynamic performance. This component is a part of the extensive range of amplifiers from Analog Devices that cater to a variety of applications, including wireless infrastructure, broadband, and industrial instrumentation.

Key Features

• Variable Gain Range: The AD8370AREZ-RL7 offers a wide gain range of 0 to 44 dB, which is adjustable in 1 dB steps, providing flexible gain control for signal conditioning in complex systems.
• High Linearity: With an Output IP3 of 43 dBm at 200 MHz, this VGA maintains high linearity across its operating range, making it suitable for high-performance applications where signal integrity is critical.
• Frequency Range: The device operates over a broad frequency range, making it versatile for a range of applications from DC to 750 MHz.
• Digital Gain Control: Gain settings can be precisely controlled through a 6-bit parallel interface, allowing for easy integration with digital systems and microcontrollers.
• Power Efficiency: The AD8370AREZ-RL7 is optimized for low power consumption, with a typical supply current of 90 mA, making it an energy-efficient choice for portable and battery-powered devices.

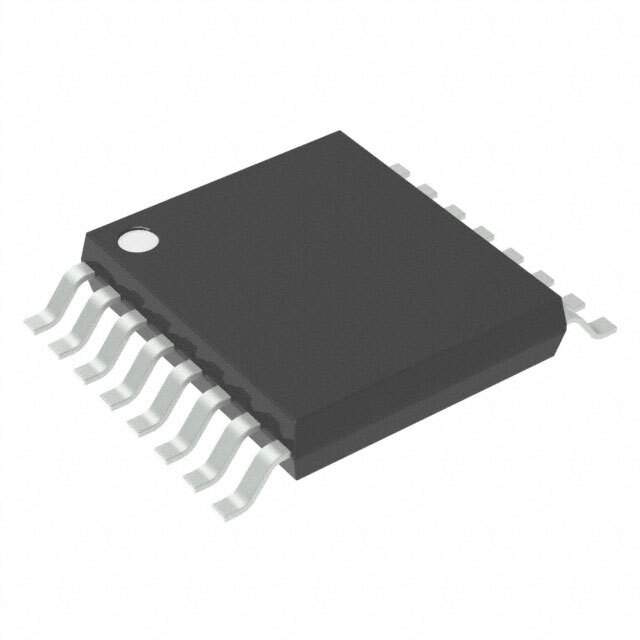

• Package and Reliability: Housed in a compact 16-lead TSSOP package, the AD8370AREZ-RL7 is designed for space-constrained applications. It also features a robust design with an operating temperature range of -40°C to +85°C.

Applications

The AD8370AREZ-RL7 is well-suited for a variety of applications, including:

• Wireless infrastructure (e.g., cellular base stations, radio link downconverters)
• Broadband communication systems
• IF sampling receivers
• Industrial and medical imaging systems
• Automated test equipment

With its combination of performance, flexibility, and reliability, the AD8370AREZ-RL7 from Analog Devices Inc. is an excellent choice for designers looking to enhance the signal processing capabilities of their next project.
