Product Overview: AD8354ACPZ from Analog Devices Inc.

The AD8354ACPZ is a state-of-the-art integrated circuit from Analog Devices Inc., designed to meet the rigorous demands of RF and IF amplifier applications. This device is a fixed-gain, linear amplifier that operates at a frequency range of 30 MHz to 1 GHz, making it ideal for a wide array of uses in telecommunications, base stations, cable modems, and other high-frequency signal chains.

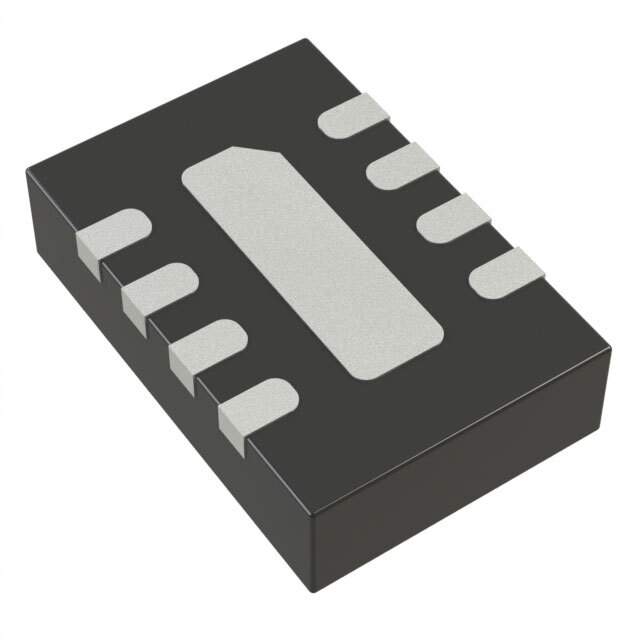

Encased in a compact LFCSP (Lead Frame Chip Scale Package), the AD8354ACPZ offers a blend of performance and space-saving design. The package size is 3x3 mm, which is perfect for space-constrained applications. With a nominal gain of 20 dB, which is stable over frequency, temperature, power supply, and from device to device, this amplifier provides consistent and reliable performance.

The AD8354ACPZ boasts an impressive output IP3 (third-order intercept point) of 45 dBm and a noise figure of 4.5 dB, ensuring that the signal integrity is maintained even under challenging conditions. Its single-ended input and output with internal 50 Ω matching provides ease of use and simplifies the design process for engineers, reducing the need for complex matching networks.

Power consumption is a key consideration in modern electronics design, and the AD8354ACPZ addresses this with its efficient operation. It typically consumes 170 mA from a 5 V supply, making it an energy-conscious choice for continuous operation in power-sensitive applications.

Furthermore, the device is designed with robustness in mind, featuring an electrostatic discharge (ESD) rating of ±2 kV (Class 1C), which helps to ensure longevity and reliability in the field. The operating temperature range of −40°C to +85°C allows the AD8354ACPZ to perform in a variety of environmental conditions.

In summary, the AD8354ACPZ from Analog Devices Inc. is a versatile, high-performance fixed-gain amplifier that offers a combination of features such as high linearity, low noise figure, and ease of integration. It stands as an excellent choice for engineers looking to optimize their RF and IF signal amplification requirements in both commercial and industrial applications.
