Analog Devices Inc.

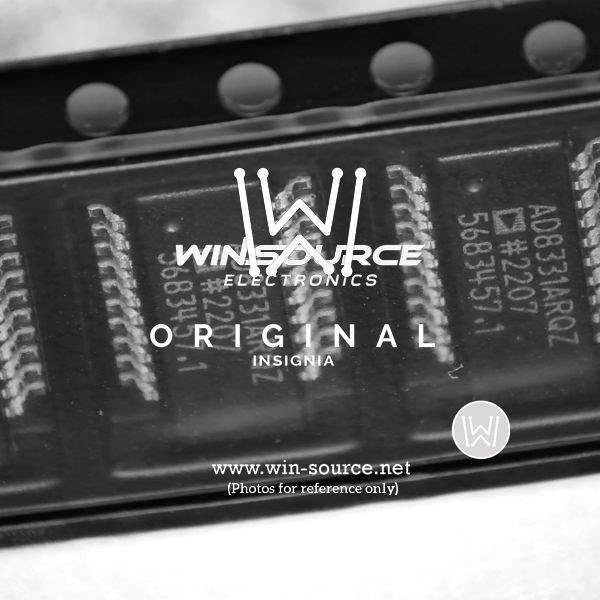

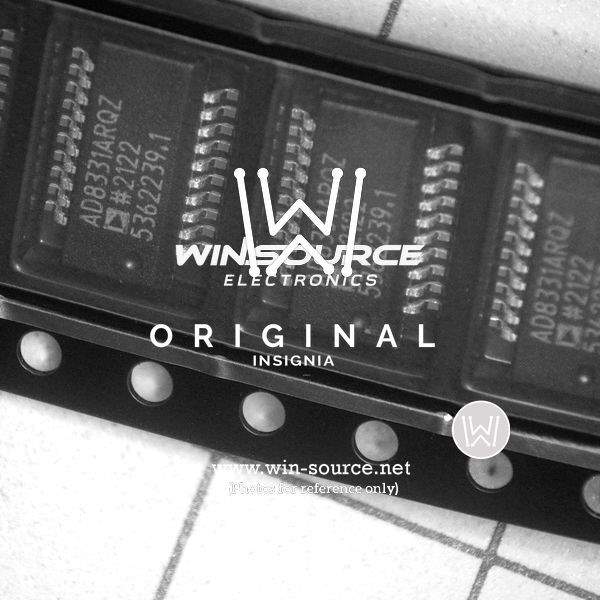

The AD8331ARQZ is a state-of-the-art Variable Gain Amplifier (VGA) developed by Analog Devices Inc., a leader in high-performance analog technology. This integrated circuit is specifically designed for precision signal amplification applications where variable gain is required. It is commonly used in medical ultrasound imaging, radar systems, and communication receivers due to its excellent dynamic range and flexible gain control.

Key Features

• Wideband Operation: The AD8331ARQZ operates over a broad frequency range, making it suitable for a variety of RF and IF signal processing tasks.
• Highly Linear Variable Gain: With its linear-in-dB gain control, the device provides precise gain settings, which are essential for applications demanding high linearity.
• Low Noise Figure: The low noise figure of the AD8331ARQZ ensures that the signal integrity is maintained, even at high gain settings, which is critical for high-fidelity applications.
• Single Supply Operation: The device can be powered by a single supply voltage, simplifying the power supply design and reducing system complexity.
• Integrated Feedback Resistors: These resistors provide consistent performance and reduce the number of external components required, which minimizes board space and system cost.

Applications

• Medical Ultrasound Imaging
• Radar Systems
• Communication Receivers
• IF Sampling Receivers
• Automated Test Equipment

Product Specifications

Parameter Value Part Number AD8331ARQZ Manufacturer Analog Devices Inc. Package / Case QSOP-24 Supply Voltage (Typical) 5V Operating Temperature -40°C to +85°C Gain Control Range 0 dB to 80 dB

The AD8331ARQZ from Analog Devices Inc. is a versatile and high-performance VGA that offers designers a perfect blend of flexibility and reliability for their signal processing needs. With its robust feature set and proven performance, this product stands out as an excellent choice for sophisticated electronic systems requiring variable gain control.
