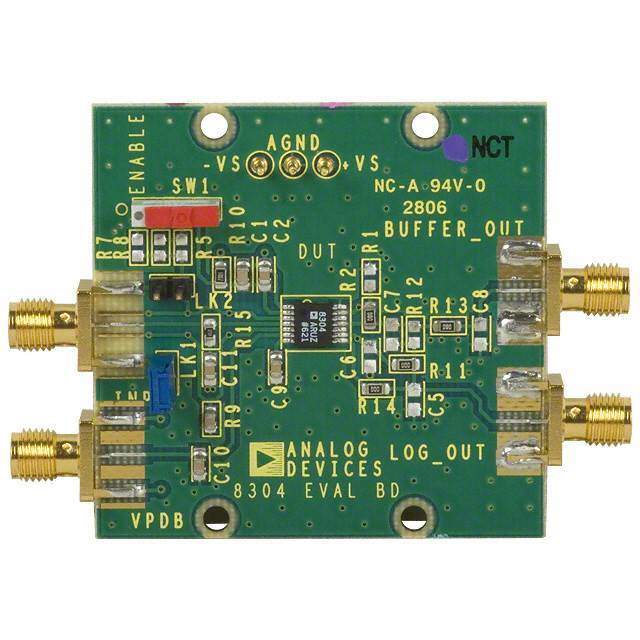

The AD8304-EVALZ from Analog Devices Inc. is a high-performance evaluation board designed to showcase the capabilities of the AD8304, a monolithic logarithmic detector optimized for the measurement of low-frequency signal power in fiber optic systems. This evaluation board is an essential tool for engineers and researchers looking to test and implement the AD8304 in their applications.

Key Features

• Dedicated to the AD8304 logarithmic amplifier/photodiode sensor interface IC
• Accurate measurement range of 160 dB from less than -80 dBm to +80 dBm
• Operates over a wide frequency range from DC to 200 MHz
• On-board reference voltage generation and temperature compensation
• Configurable for different measurement ranges and response speeds
• Easy-to-use stand-alone mode or controlled via test equipment

Applications

The AD8304-EVALZ is suitable for a wide array of applications in optical and RF signal processing. This includes:

• Fiber optic signal strength detection
• Receiver signal strength indication (RSSI) in wireless systems
• Precision optical power measurement
• Logarithmic amplification for analog-to-digital conversion
• Medical and scientific instrumentation

Design and Integration

Designed for ease of use, the AD8304-EVALZ allows for quick setup and integration into test environments. The board includes all necessary support circuitry for the AD8304, making it easy to connect to power supplies, signal sources, and measurement equipment. The layout and design of the board have been optimized to minimize external influences on the measurement accuracy, ensuring reliable and consistent results.

Support and Resources

Analog Devices Inc. provides comprehensive support for the AD8304-EVALZ, including detailed documentation, application notes, and reference designs. Customers can access a wealth of resources to facilitate the development process and maximize the performance of the AD8304 in their specific applications.
