Analog Devices Inc. AD7175-8BCPZ Product Overview

The AD7175-8BCPZ is a high-performance, 24-bit analog-to-digital converter (ADC) from Analog Devices Inc., designed to deliver precision measurement for a wide range of industrial and instrumentation applications. This ADC provides a perfect solution for systems that require low noise, high throughput, and exceptional accuracy.

Featuring a maximum channel scan rate of up to 50 kSPS (kilo samples per second), the AD7175-8BCPZ ensures rapid data acquisition without sacrificing the quality of the signal conversion. This speed is complemented by its impressive input bandwidth, allowing the capture of fast-changing signals with high fidelity.

The device integrates an on-chip low noise programmable gain amplifier (PGA), offering a selectable gain from 1 to 128, which makes it versatile for various signal ranges. This flexibility is particularly useful in sensor measurement applications where input signals can vary significantly.

One of the key benefits of the AD7175-8BCPZ is its ease of use. It comes with multiple filter options, including a sinc5 filter and an enhanced 50 Hz/60 Hz rejection filter, which help to reduce the effects of interference from common power-line frequencies. This feature is especially valuable in industrial environments where electrical noise can often compromise measurement accuracy.

The device also supports a wide range of voltage references, from external, internal, to AVDD – 1.2 V, giving designers the freedom to choose the best reference source for their specific application needs. The AD7175-8BCPZ operates over a temperature range of -40°C to +105°C, ensuring reliable performance even under harsh environmental conditions.

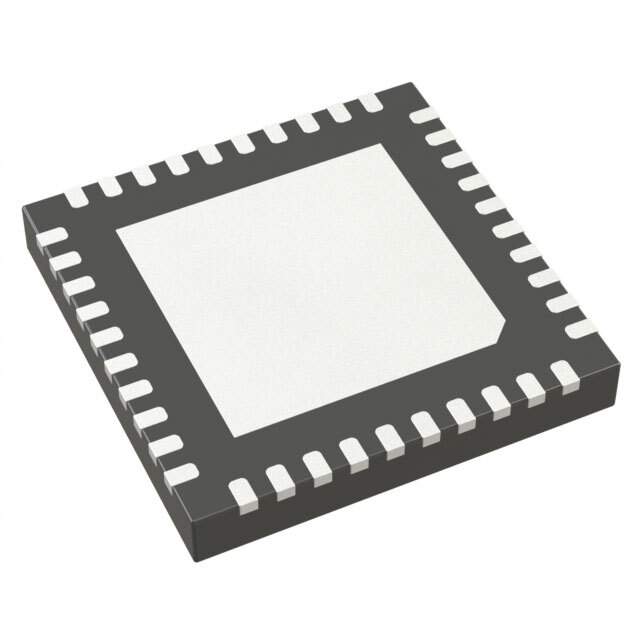

Encased in a compact 32-lead LFCSP package, the AD7175-8BCPZ is designed for space-constrained applications. Its small footprint allows for integration into portable devices and systems where space is at a premium.

Overall, the AD7175-8BCPZ from Analog Devices Inc. is a top-tier ADC offering that combines speed, precision, and flexibility, making it an ideal choice for professionals in need of high-quality data conversion in their electronic designs.
