Analog Devices Inc. AD6644ASTZ-40: A High-Performance IF Sampling ADC

The AD6644ASTZ-40 is a state-of-the-art 14-bit Analog-to-Digital Converter (ADC) designed by Analog Devices Inc., a leader in high-performance signal processing solutions. This ADC is specifically tailored for Intermediate Frequency (IF) sampling applications and is part of the high-speed ADC product family that delivers exceptional performance and reliability.

Key Features

• Resolution: The AD6644ASTZ-40 boasts a high-resolution 14-bit output, allowing for precise digital representation of analog signals.
• Sampling Rate: With a maximum sampling rate of 40 MSPS (Mega Samples Per Second), this ADC is capable of capturing fast-changing signals with high fidelity.
• Input Bandwidth: It features an IF sampling bandwidth that extends beyond 200 MHz, making it suitable for a wide range of high-frequency applications.
• Dynamic Performance: Exhibiting an excellent spurious-free dynamic range (SFDR) and signal-to-noise ratio (SNR), the AD6644ASTZ-40 ensures low distortion and high signal clarity.

Applications

The AD6644ASTZ-40 is ideal for various demanding applications, including:

• Wireless communication infrastructure
• Radar and satellite communication systems
• Medical imaging equipment
• Instrumentation and test equipment

Design and Integration

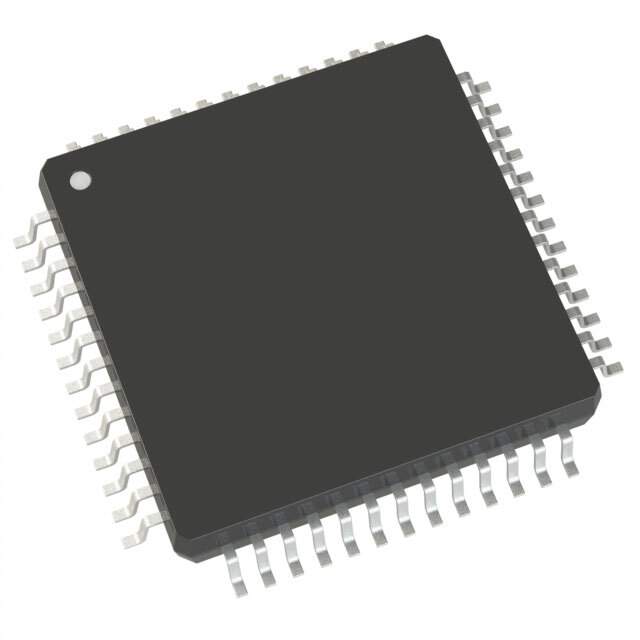

This ADC is housed in a compact 52-lead LQFP (Low Profile Quad Flat Package) that ensures a minimal footprint on the circuit board, making it an excellent choice for space-constrained applications. The AD6644ASTZ-40 is designed with an easy-to-use parallel interface, facilitating seamless integration with digital signal processors (DSPs) and FPGAs.

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality, and the AD6644ASTZ-40 is no exception. It is manufactured using a high-reliability process that ensures consistent performance even under extreme operating conditions. With its robust design and proven track record, the AD6644ASTZ-40 is a trusted choice for engineers looking for a high-performance IF sampling ADC solution.
