Product Overview: AD603ARZ-REEL7 from Analog Devices Inc.

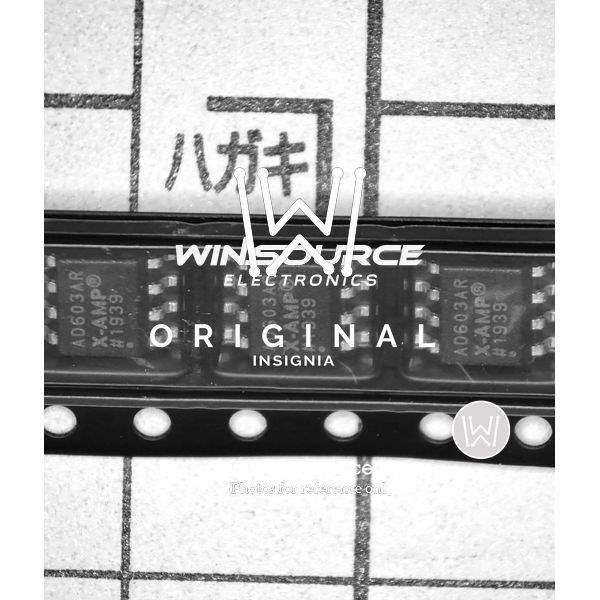

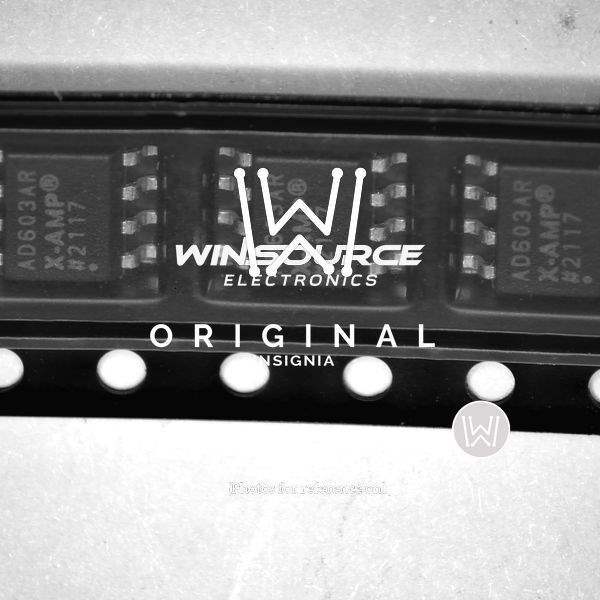

The AD603ARZ-REEL7 is a versatile, low noise, voltage-controlled amplifier designed for a wide array of applications requiring precise signal amplification. Manufactured by Analog Devices Inc., a leader in high-performance analog technology, this product is part of their extensive range of amplifiers and comparators. The AD603ARZ-REEL7 is offered in a compact SOP-8 package and is provided on a 7-inch reel, making it suitable for automated assembly processes.

With its unique architecture, the AD603ARZ-REEL7 provides an excellent combination of high bandwidth and a well-defined gain control interface that allows for easy adjustment of the amplification factor. This feature is particularly useful in systems where gain needs to be dynamically adjusted, such as in automatic gain control (AGC) circuits or in variable-gain amplifiers (VGAs) for audio and instrumentation applications.

The device operates over a wide supply voltage range, from ±2.7 V to ±6 V, and features a bandwidth of 90 MHz when configured for a gain of 0 dB. This ensures that the amplifier can handle a broad spectrum of signal frequencies without significant distortion or loss of fidelity. The AD603ARZ-REEL7 also boasts an impressive noise performance, with a low noise figure that minimizes the introduction of additional unwanted signals into the amplified output.

One of the key advantages of the AD603ARZ-REEL7 is its programmable gain, which can be set from -11 dB to +31 dB in linear-in-dB steps, providing designers with the flexibility to tailor the amplifier's performance to specific application requirements. This is achieved through the use of an external control voltage, making it straightforward to integrate the device into a variety of electronic systems.

Furthermore, the AD603ARZ-REEL7 features a differential input and output capability, which allows for better common-mode noise rejection and improved signal integrity. This makes it an ideal choice for applications where maintaining signal quality is of utmost importance, such as in communication systems, radar, and medical imaging equipment.

In summary, the AD603ARZ-REEL7 from Analog Devices Inc. is a high-quality, adaptable amplifier that is well-suited for designers looking to incorporate precise gain control and low-noise amplification into their electronic designs.
