Product Overview: AD595AQ from Analog Devices Inc.

The AD595AQ is a complete instrumentation amplifier and thermocouple cold junction compensator on a monolithic chip, offered by the renowned semiconductor manufacturer Analog Devices Inc. It is designed to amplify the small voltage differences across a thermocouple, and provide a direct Celsius temperature output, making it an ideal solution for temperature measurement and control applications.

Key Features:

• Integrated Cold Junction Compensation: The AD595AQ includes an on-chip ice point compensation (cold junction compensation) which simulates the thermocouple's reference junction, allowing for accurate temperature readings without the need for external components.
• High Accuracy: This device offers a high level of precision with a typical nonlinearity of only ±0.5°C over a temperature range of 0°C to +50°C, ensuring reliable and consistent temperature measurements.
• Wide Operating Range: It operates effectively over a wide temperature range, making it versatile for various applications including industrial, consumer, and scientific instrumentation.
• Easy to Use: The AD595AQ is designed for ease of use, requiring only a single external resistor to set the desired gain. It also provides a direct output voltage that is proportional to the temperature in °C.

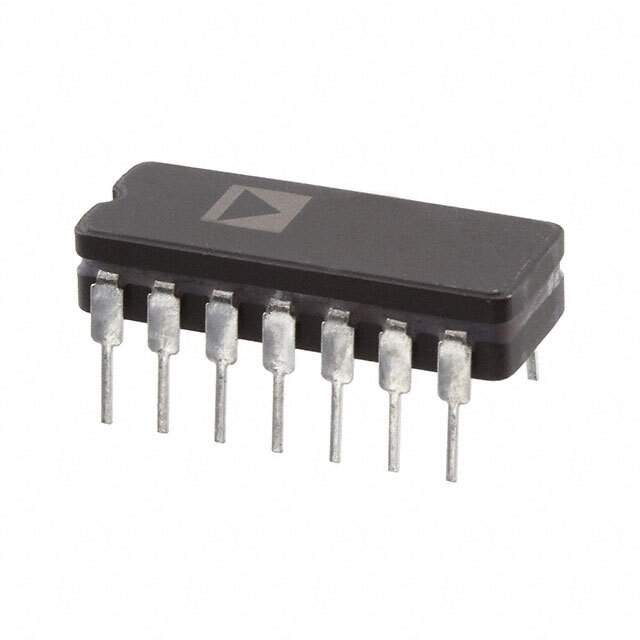

• Robust Design: Encased in a 14-lead ceramic dual in-line package (CerDIP), the AD595AQ is built to withstand harsh environments and is suitable for high-reliability applications.

Applications:

The AD595AQ is widely used in temperature sensing applications that require high precision and simplicity in design. Its applications include:

• Industrial process control
• Temperature monitoring systems
• Data acquisition systems
• Thermocouple amplifiers
• Scientific instrumentation

In conclusion, the AD595AQ from Analog Devices Inc. is a highly integrated and reliable solution for temperature measurement, providing both ease of integration and high accuracy in a robust package. Its ability to directly interface with a thermocouple and provide a Celsius scale output makes it a preferred choice for engineers and designers in a wide array of temperature sensing applications.
